Airless

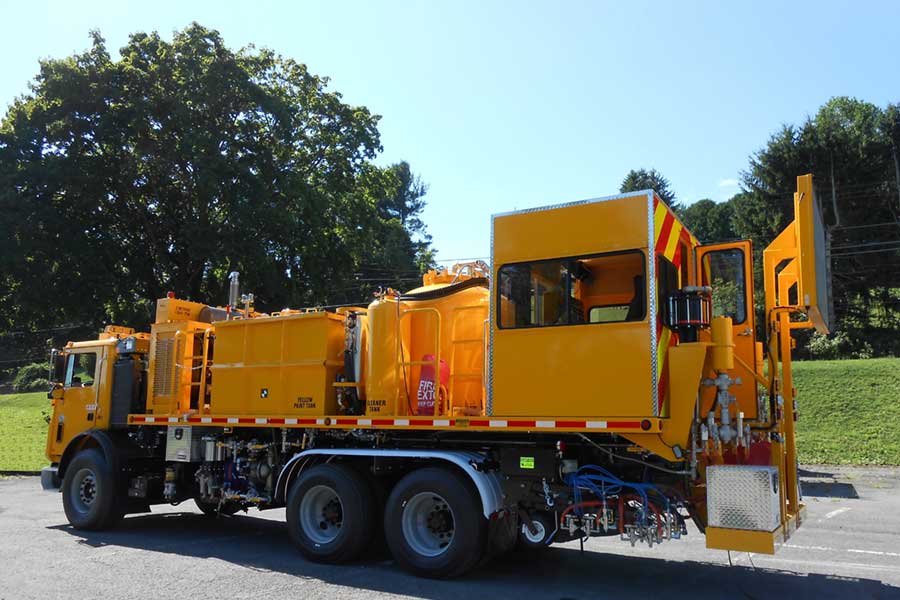

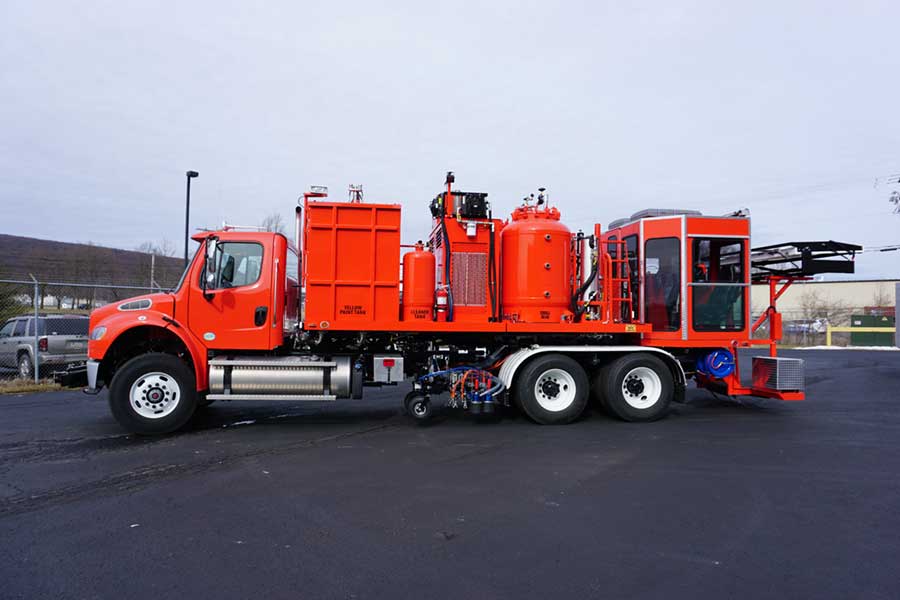

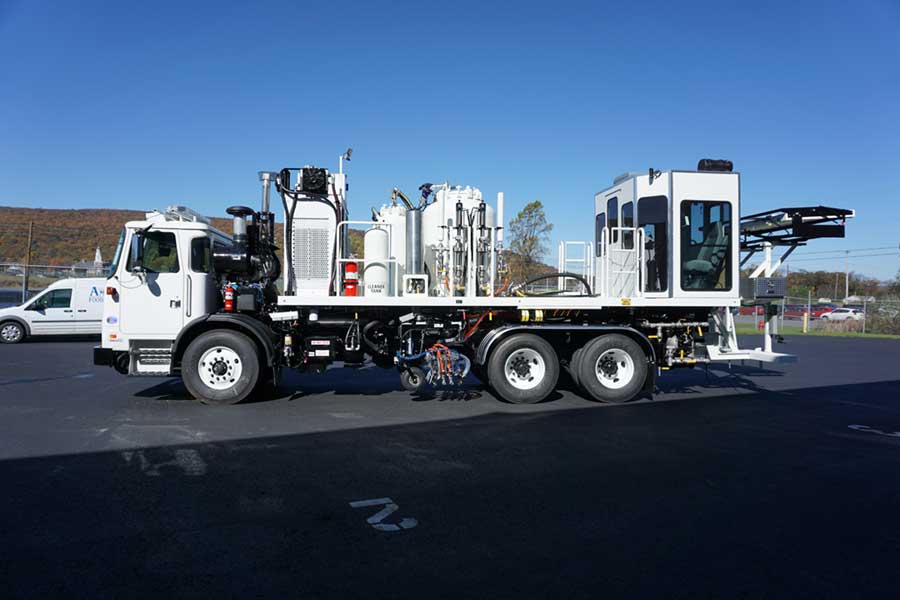

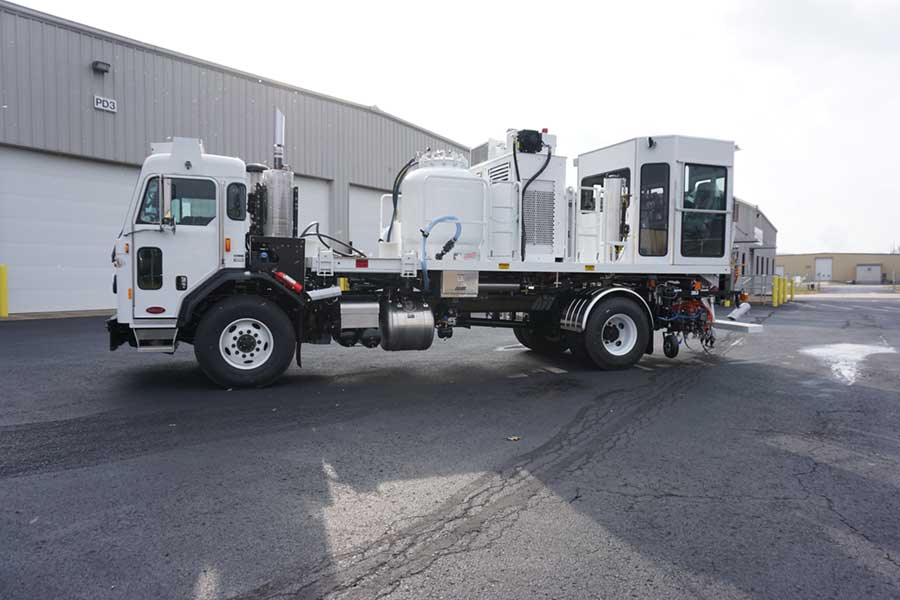

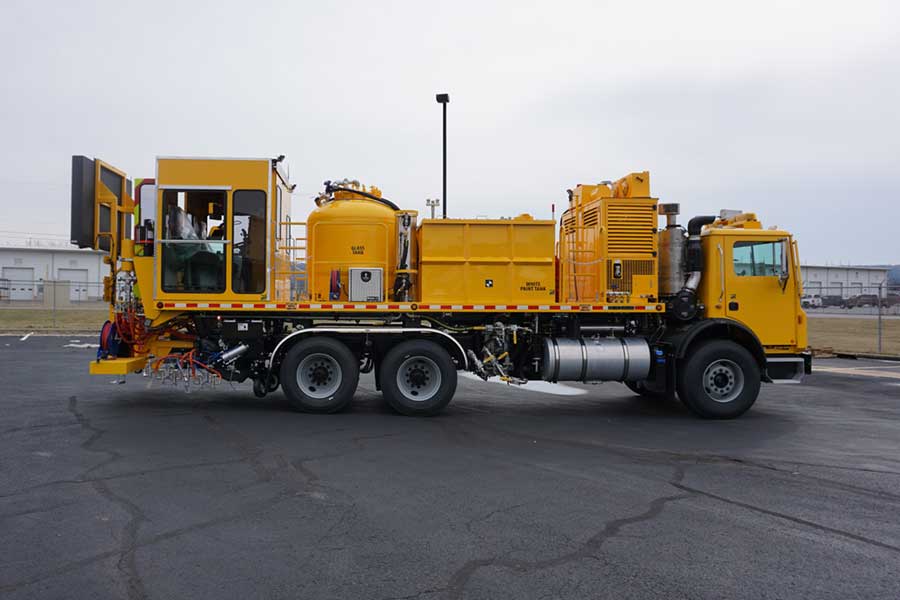

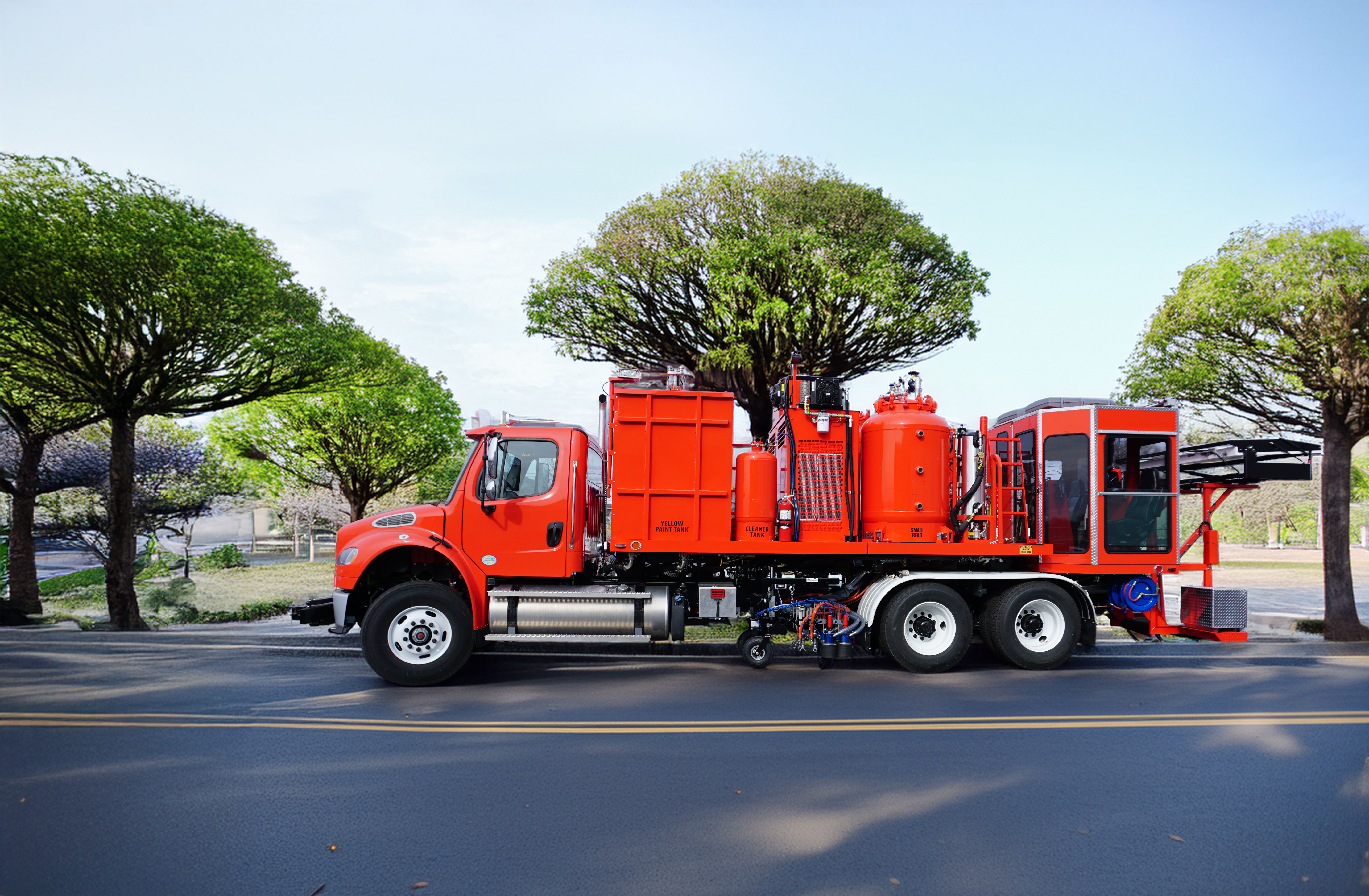

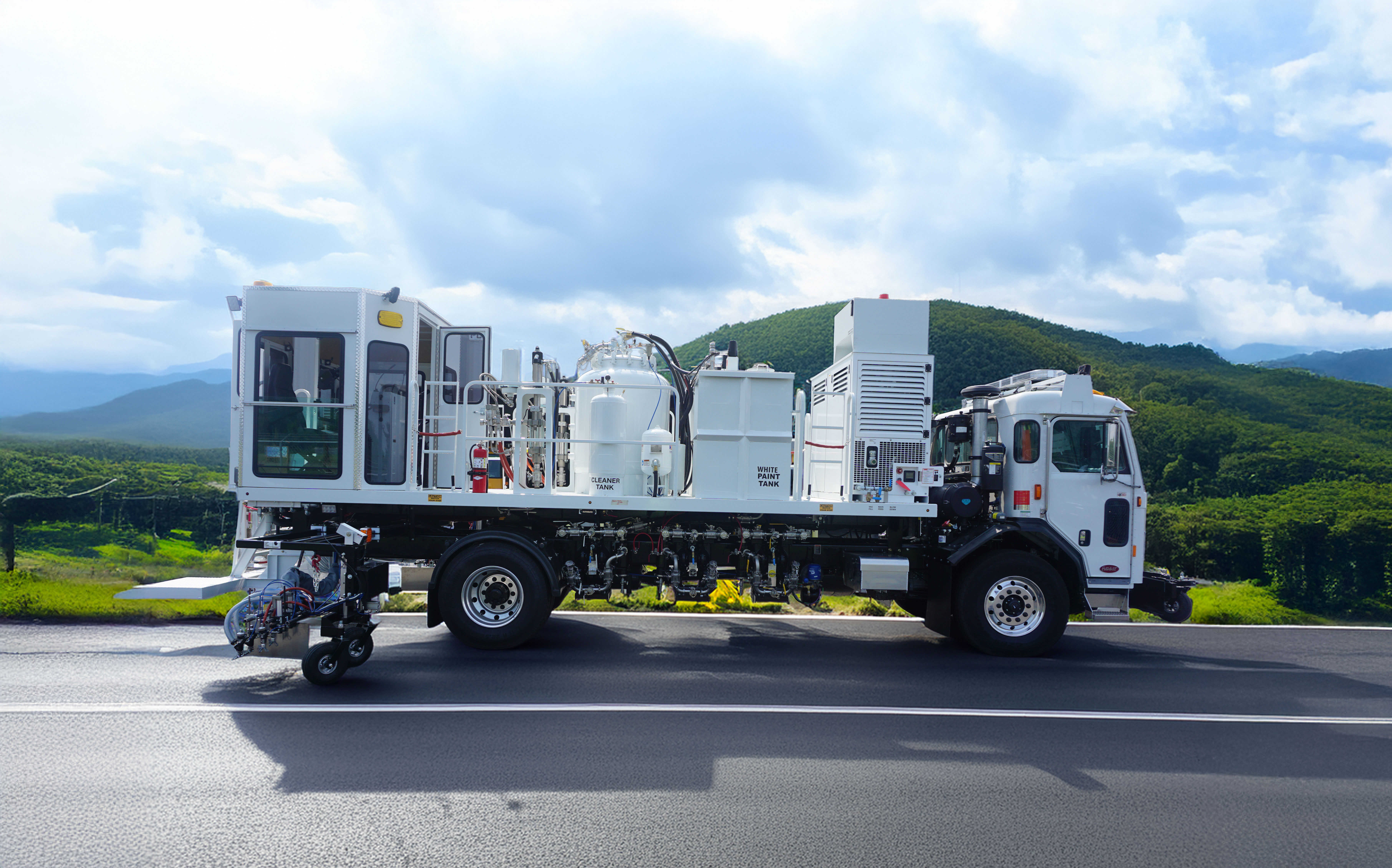

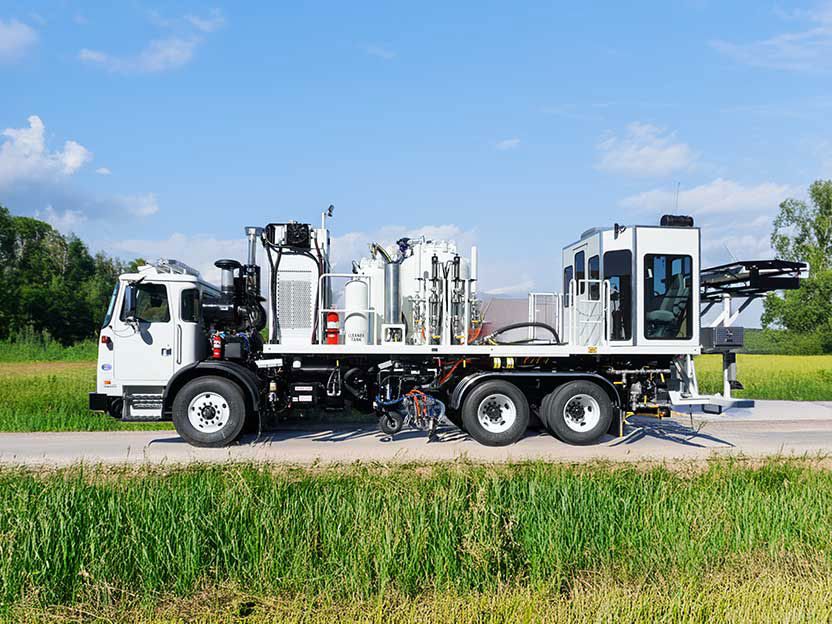

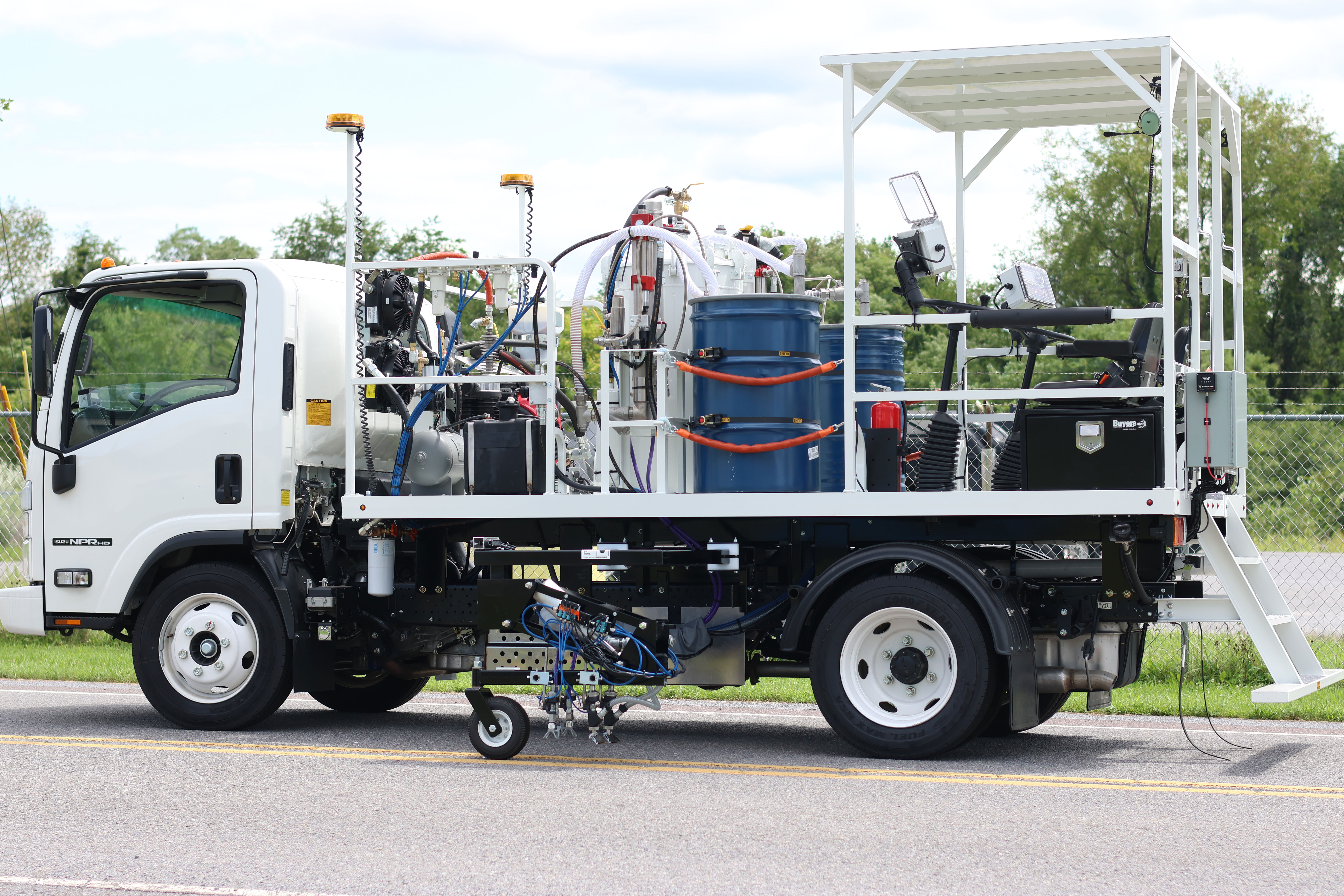

The MB Airless paint system is a high-pressure striping system built for precision and efficiency. A piston pump—operated hydraulically or by air—delivers paint at 800 to 2,000 PSI to a specialized airless paint gun. A low-pressure pump is used to charge the high-pressure pump, transferring material from the paint tank or heat exchangers. This high pressure, combined with a precise small tip, will produce clean, sharp-edged line patterns with excellent definition. The system supports flexible material handling with the ability to draw paint directly from manufacturer tote tanks, drums or non-pressurize paint tanks.

Highlights

  • Airless system – Deliver Precision Striping for Demanding, High-Traffic Projects
  • Configurable guidance options including left and right-side guidance camera system, optical sight, laser, and hydraulic pointer and more
  • Flexible control systems with Skipline, handheld remotes, and joystick operation
  • Gun height adjustment and insullated paint lines ensure crisp, clean application
  • Multiple gun systems available: paint and bead guns from Kamber and Graco

Your benefits

  • Sharpest line patterns – Consistent pressure control for crisp markings
  • Efficient at high speeds – Maintains accuracy during fast striping operations
  • Greater capacity on a smaller chassis – Maximizes productivity without added bulk
  • Simple to operate and maintain – Intuitive design with easy service access
  • Highly reliable – Durable components built for long-term performance

Equipment

  • Paint Capacity:

    120-240 gallons (without exceeding 19,500 GVW on the chassis)

  • Bead Capacity:

    800 - 1,500 lbs allowing for 6 lbs of beads per gallon of paint

  • Rate:

    8.3 gallon per minute capacity of each pump

  • Available Options:

    LaserLine G:-3000P Laser Guidance System
    Front bumper mounted hydraulic actuated pointer system
    Kamber 55 airless striping guns
    Arrow Board or Arrow Stick
    Bead loading system
    Other options available
    Cone setting deck
    Intercom system for driver/operator to Econliner
