MLT-KIOTI

Highlights

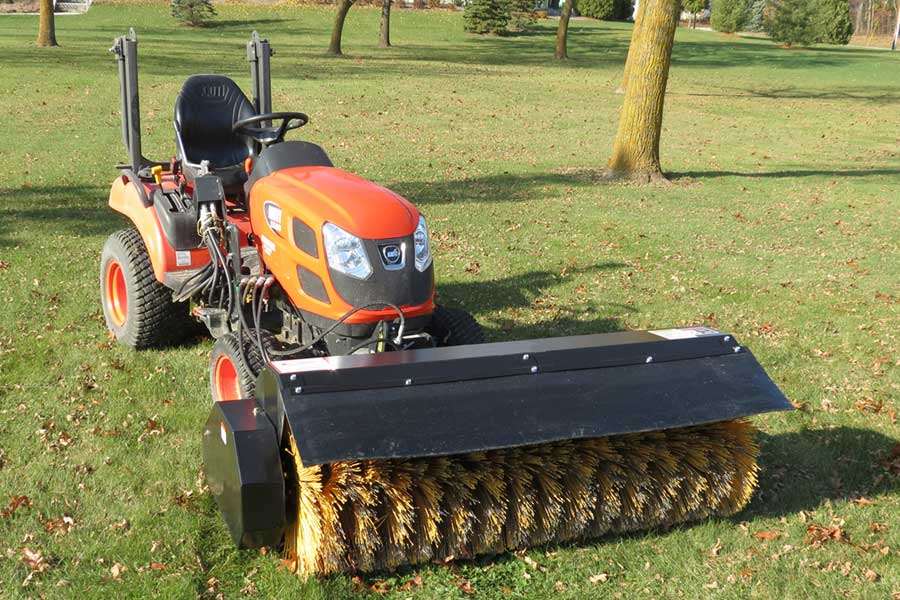

A mechanically driven broom solution for the Kioti Sub Compact tractor. With the ability to clean and clear snow, dirt, debris and grass, this rotary broom is perfect for many applications.

  • Mechanically driven rotary angle broom

  • Brush lift provided by means of the prime mover

  • Storage stands for simple mounting, dis-mounting, and storage

  • Greasable heavy duty, self-aligning, flange type bearings support the broom core

  • Brush core can be installed with either end to the left or right with no effect on sweeping performance

Equipment

  • Sweeping Widths Available:

    52", 60"

  • Brush Diameter:

    25"

  • Core Diameter:

    6 3/8"

  • Broom Speed:

    up to 200 RPM

  • Drive:

    Mechanical

  • Min. Hydraulic Flow:

    12 GPM (Single Standard Motor)

  • Max. Hydraulic Flow:

    20 GPM (Single Standard Motor)

  • Mounting:

    Dependent on tractor installing on
