LLB

Highlights

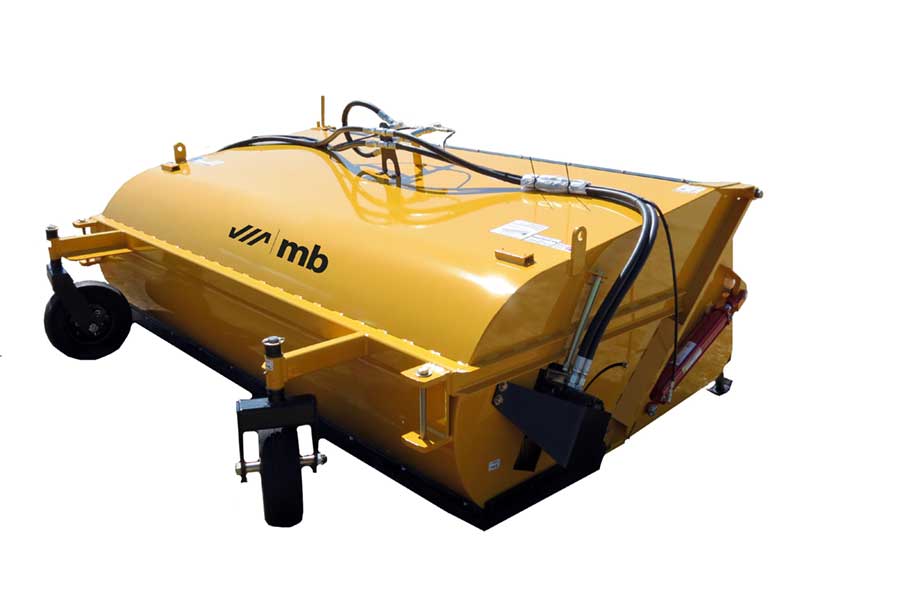

This hydraulic pick-up broom for large loaders is the ideal rotary broom for many applications. The hopper allows for complete clearing and cleaning of dirt, debris and grass.

  • Hydraulically driven rotary angle broom.

  • Heavy duty 16", 360° swivel casters

  • Sight Indicators

  • Brush and core assembly can be removed from frame without disconnecting hoses from drive motor(s)

  • Brush hopper has adjustable baffle to fill bucket completely

Equipment

  • Sweeping Widths Available:

    7', 8', 9'

  • Hopper Capacity:

    7’ – 33.0 cu. Ft.
    8’ – 37.5 cu. Ft.
    9’ – 42.0 cu. Ft.

  • Brush Diameter:

    32"

  • Core Diameter:

    10"

  • Broom Speed:

    up to 200 RPM, dependent on prime mover

  • Drive:

    Hydraulic

  • Min. Hydraulic Flow:
  • Max. Hydraulic Flow:
  • Mounting:
  • Options Available:

    Dual Low Flow Drive Motor
    Sprinkler System(s)
    Gutter broom(s)
