Northstar

Highlights

• 95-inch wheel base for tight turning circles and excellent maneuverability.

• 500 HP, electronic turbocharged diesel engine, T4F EPA emission certified

• Tapered leaf spring suspension for smoother ride and increased driver control

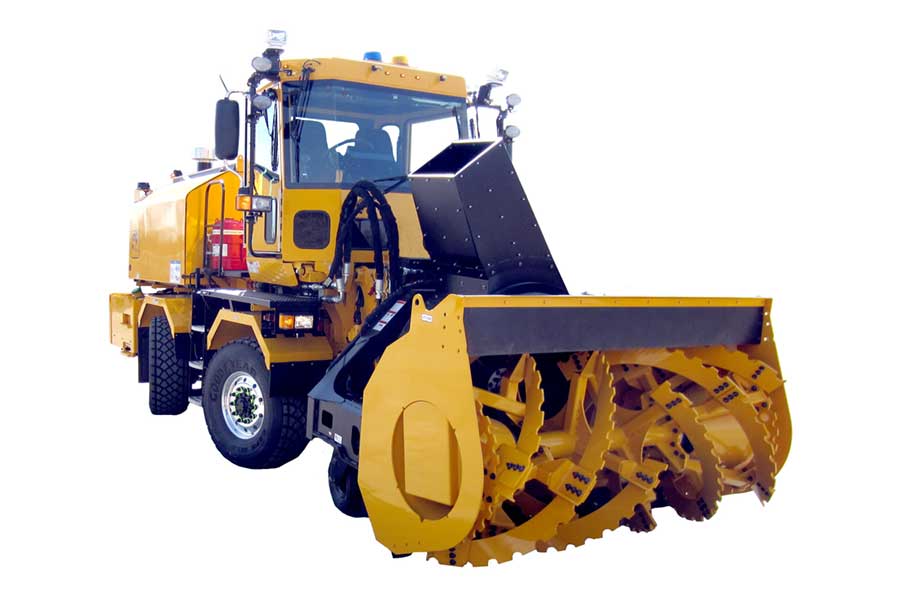

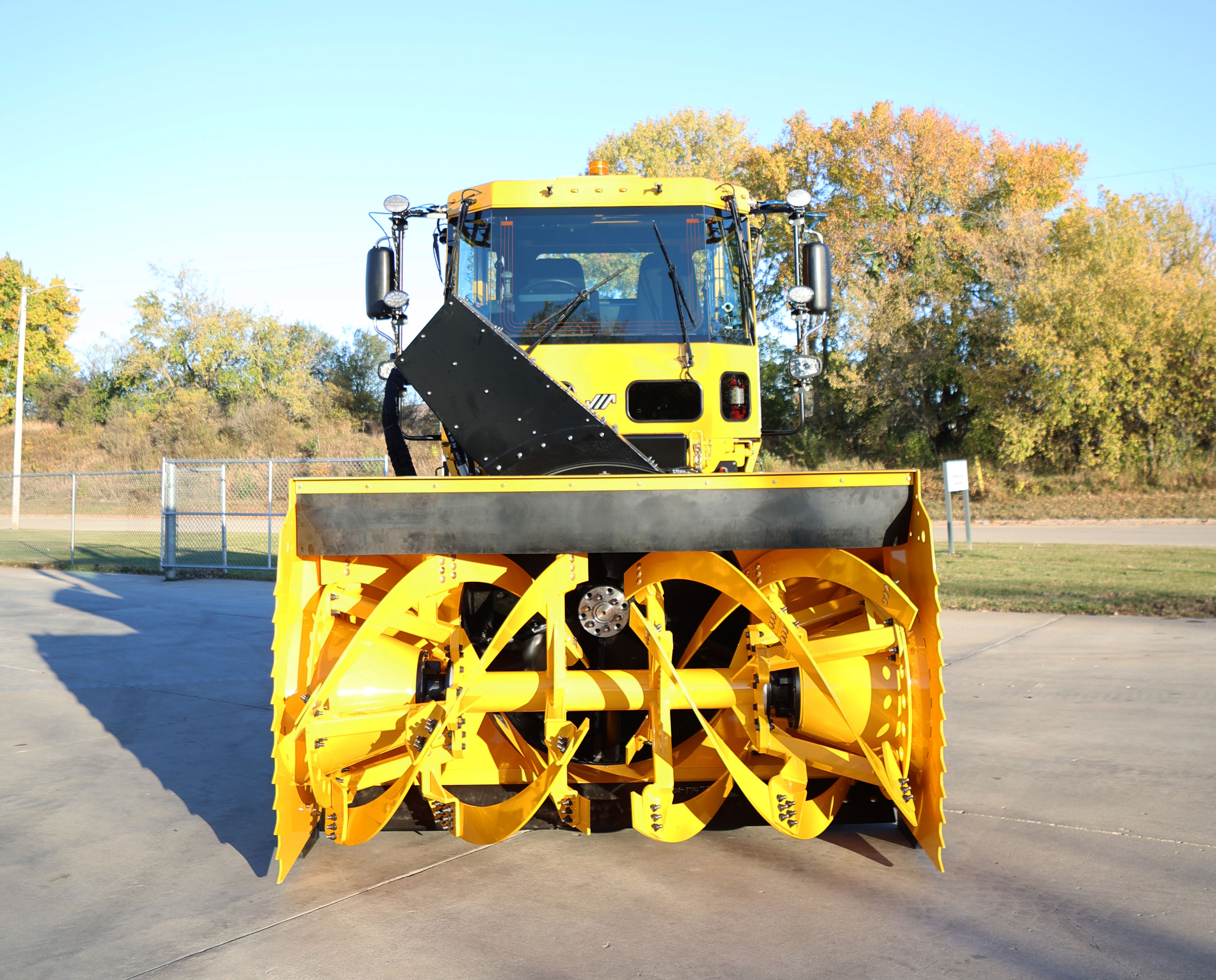

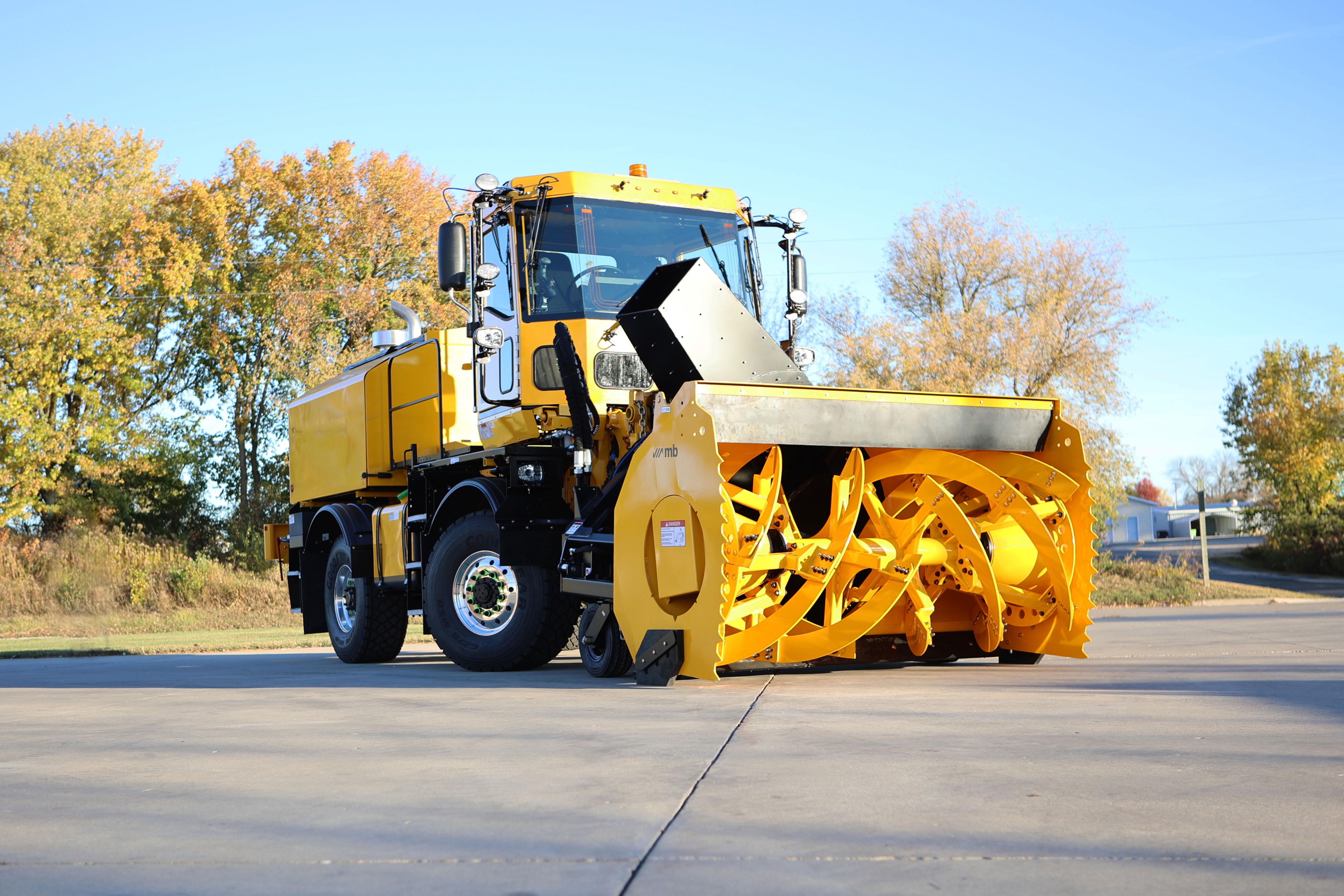

• Snow blower capacity up to 3,800 tons per hour

• Ground drive is variable speed hydrostatic, 2 speed transfer case to axles

Equipment

• Front Axle :

  29,000 lbs front drive/steer axle with operator controlled locking differential

• Rear Axle :

  Dana 23,000 lbs rear driving axle with operator controlled locking differential

• Wheelbase:

  95-inch wheel base for tight turning circles and excellent maneuverability

• Drive Engine:

  Electronically controlled 100 cc radial piston variable displacement hydrostatic pump

• Brakes :

  ABS - Anti-lock brake system on both axles

• Fuel Capacity:

  Dual 100-gallon fuel tanks for up to 12 hours of continuous operation

• Tires :

  445/65R22.5 Load Range L traction tread front and rear

• Controls :

  Cab integrated microprocessor CAN bus controls with MDC color screen display

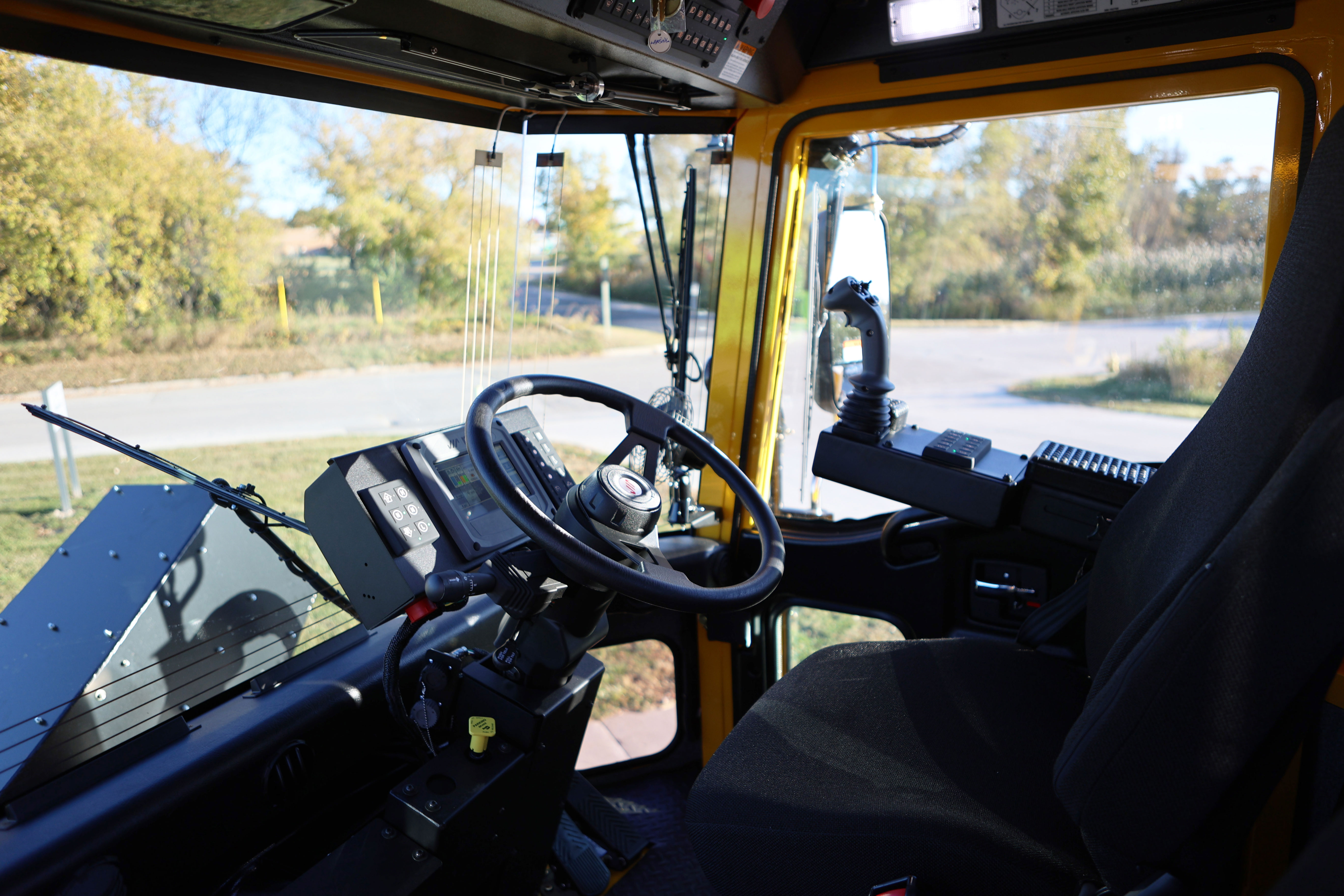

• Cab:

  2 person air suspension cab with air ride seats
