Schmidt Street King 660

Highlights

• With a self-supporting frame, the mounted sweeper can be attached to any truck type, provided it meets load capacity conditions.

• Offers maximum flexibility and adaptability.

• The suction fan is in the front section of the hopper, across the direction of travel, reducing  the overall length of the sweeper considerably while also optimizing air flow.

• The enclosed engine compartment combined with state-of-the-art engine technology has helped to make the Street King 660 one of the quietest and most environmentally-friendly sweepers on the market.

• Optimum debris collection with sweeping speeds up to 15% higher by comparison.

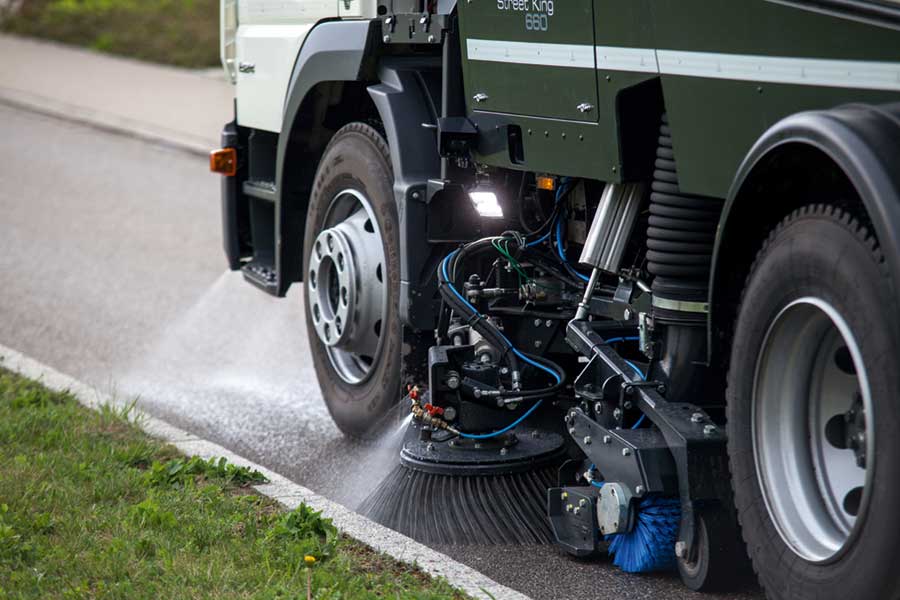

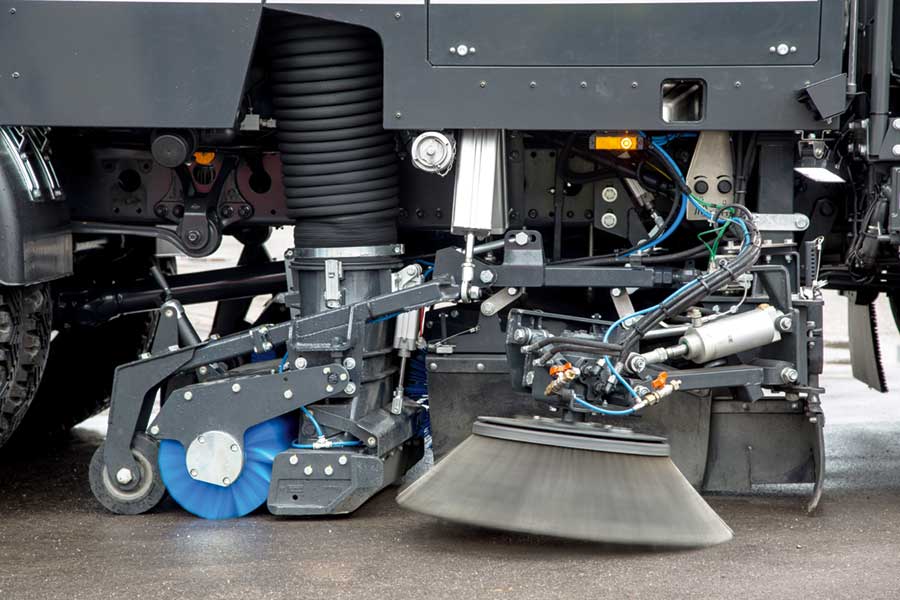

• • Outstanding sweeping performance, even around corners, with expansive disc brush coverage, feed roller, and suction shaft.
• • Adjustable brush pressure and speed for reduced brush wear.

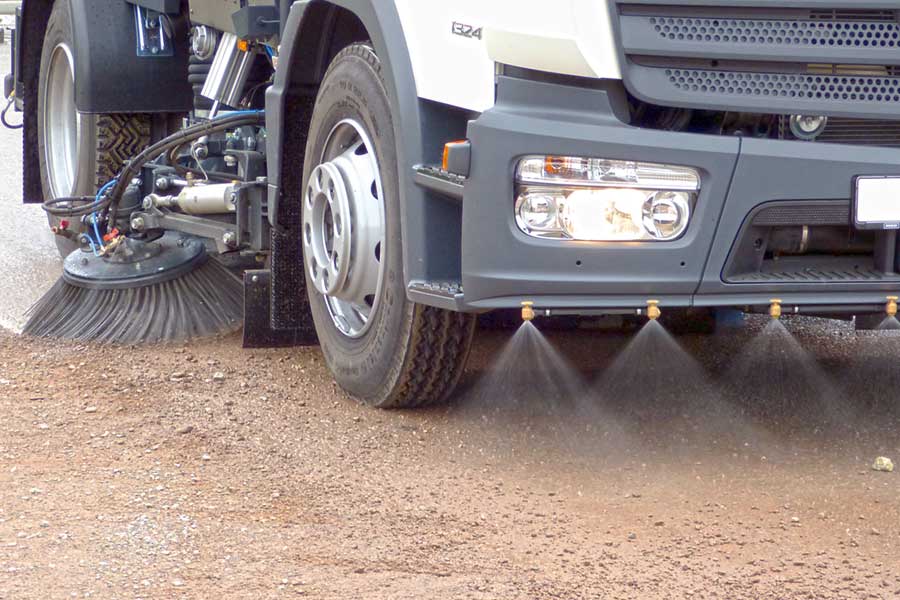

• • Electrically controlled water jets that provide for dust-free collection of debris.

Equipment

• Hopper Volume:

  9.2 yd³

• Hopper Tipping Angle:

  60°

• Fan Drive System:

  Hydraulic

• Fan Drive Speed:

  2,100 – 3,100 rpm

• Standard Water Tank Volume:

  422 gal

• Hydraulic Oil Tank:

  34 gal

• Transport Speed:

  0-55 mph

• Working Speed:

  0-12 mph

• Basic machine unladen weight (no options):

  9,370 lbs

• Basic machine* with dual design unladen weight:

  10,251 lbs
