TKH-TR

Highlights

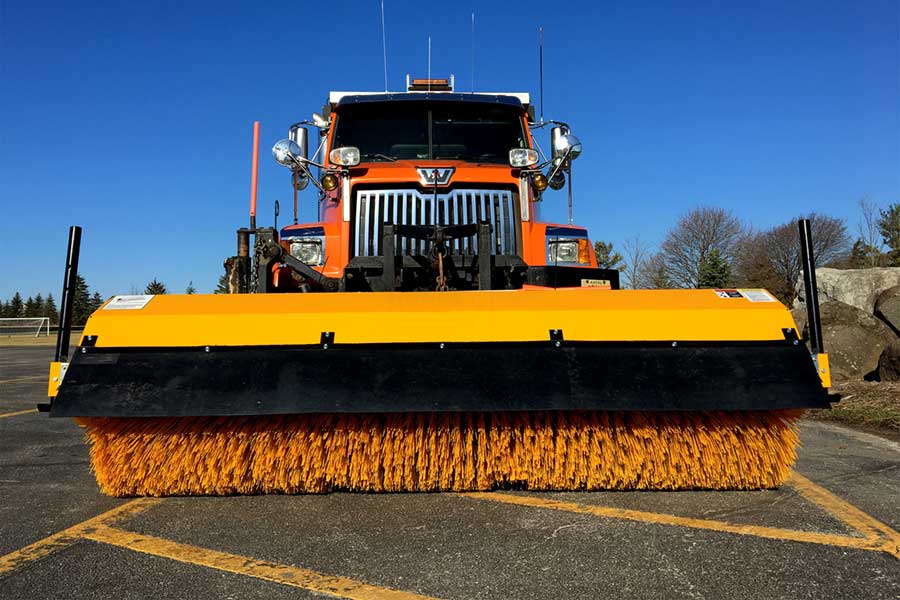

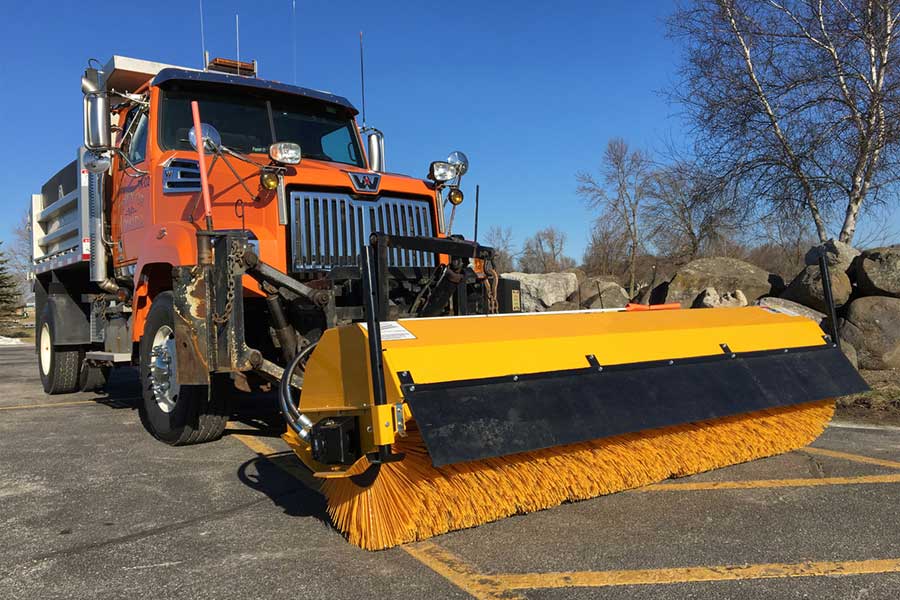

Created for large trucks, the TKH-TR has many size available options to work for use on any job. Clearing snow, dirt and debri in any season can now be done with your large truck and this powerful broom.

  • Hydraulically driven rotary angle broom.

  • Hydraulic swing: 30 degrees left and right

  • Storage stands

  • Brush head lifted by prime mover

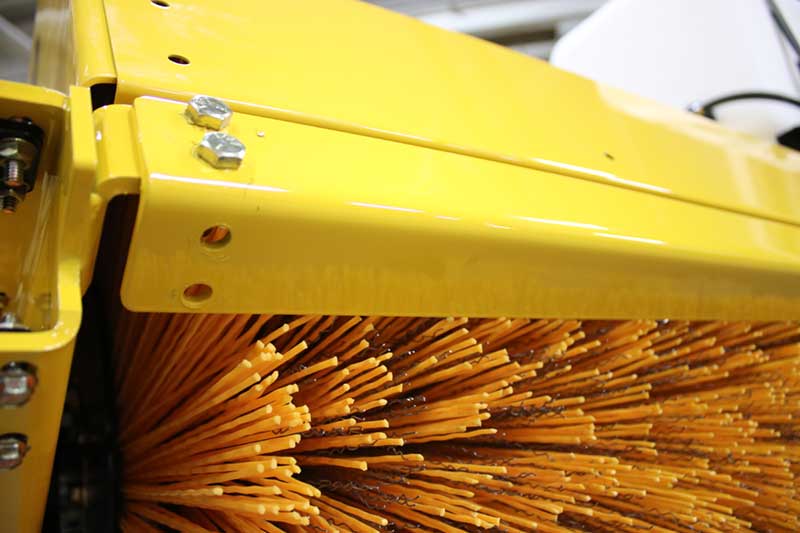

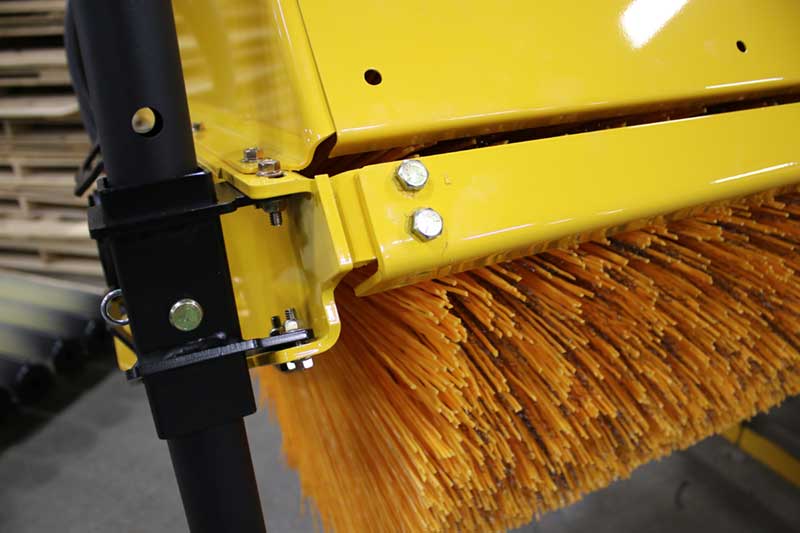

  • Brush hood manufactured from 16-Gauge steel with formed edge fold for additional strength

Equipment

  • Sweeping Widths Available:

    7', 8', 9', 10', 11', 12'

  • Brush Diameter:

    32"

  • Core Diameter:

    10"

  • Broom Speed:

    up to 250 RPM

  • Drive:

    Standard dual low-speed, high-torque, 18 c.i.d hydraulic motors

  • Min. Hydraulic Flow:

    16 GPM (Dual Motor Low Flow)

  • Max. Hydraulic Flow:

    44 GPM (Dual Motor Standard Flow)

  • Angle Control:

    Bulkhead or E/H Valve

  • Mounting:

    Adapts to existing plow mount

  • Options Available:

    Deflector
    Sprinkler System
    Oil Cooler
