CL-HT

Highlights

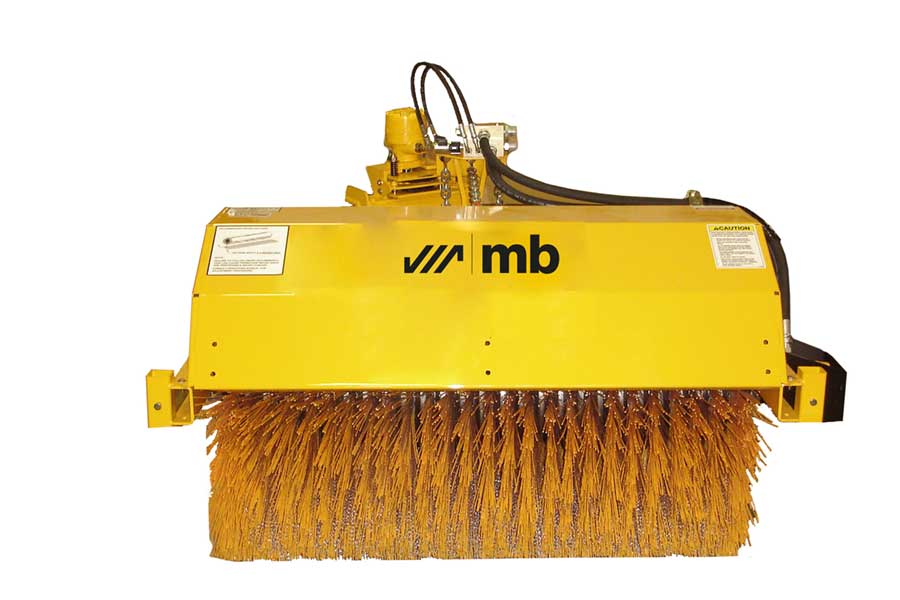

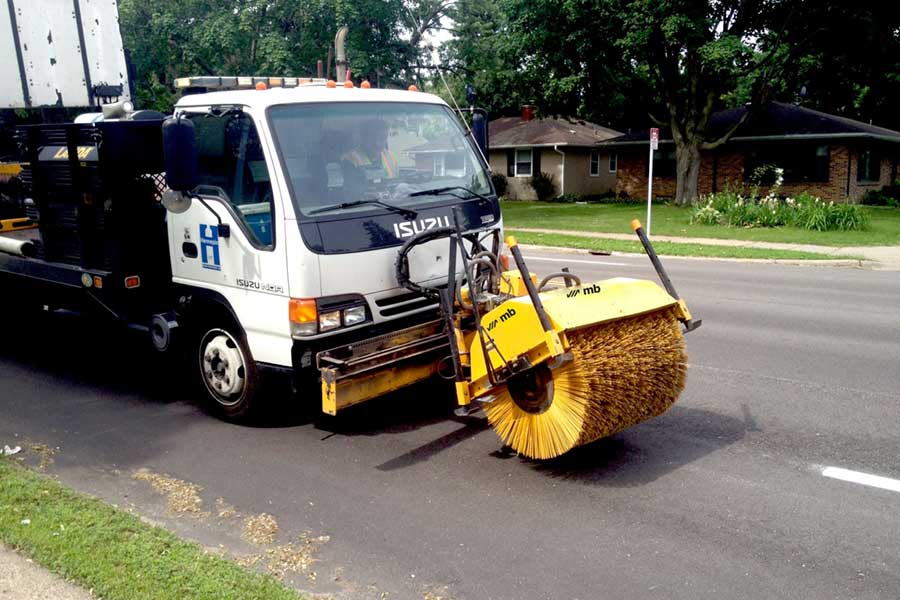

A centerline broom, the CL-HT comes in various sizes perfect for any job. Directly mounted on the truck frame with a bumper/rail for maximum rotation, the broom clears snow, dirt and debris in all seasons.

  • Hydraulically driven rotary angle broom.

  • Hydraulic swing capable of 30° left or right of center

  • Storage stands for simple mounting, dis-mounting and storage

  • Bumper/rail, constructed from a 3” x 8” rectangular tube Mounted to truck frame

  • 6 rollers allow brush head to shift side to side on 92” rail

Equipment

  • Sweeping Widths Available:

    2', 3', 4'

  • Brush Diameter:

    32"

  • Core Diameter:

    10"

  • Broom Speed:

    up to 200 RPM, dependent on prime mover

  • Drive:

    Hydraulic

  • Min. Hydraulic Flow:

    12 GPM (Single Standard Motor)

  • Max. Hydraulic Flow:

    20 GPM (Single Standard Motor)

  • Angle Control:
  • Mounting:
  • Options Available:

    Dirt Deflector
    Low Fow Drive Motor
    Hydraulic Engine Pallet
    Sprinkler System
    Sight Indicators
