TKH-L

Now Available through Werk-Brau

Highlights

• Hydraulically driven rotary angle broom.

• Hydraulic swing capable of 30° left or right of center

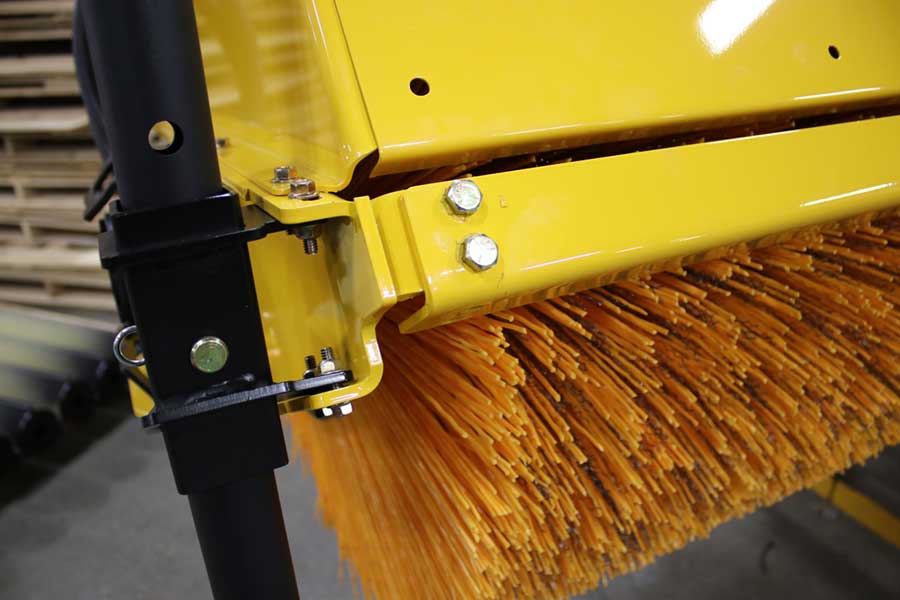

• Storage stands for simple mounting, dis-mounting, and storage

• Brush head is lifted by means of the prime mover

• Sight Indicators

Equipment

• Sweeping Widths Available:

  7', 8', 9', 10', 11', 12'

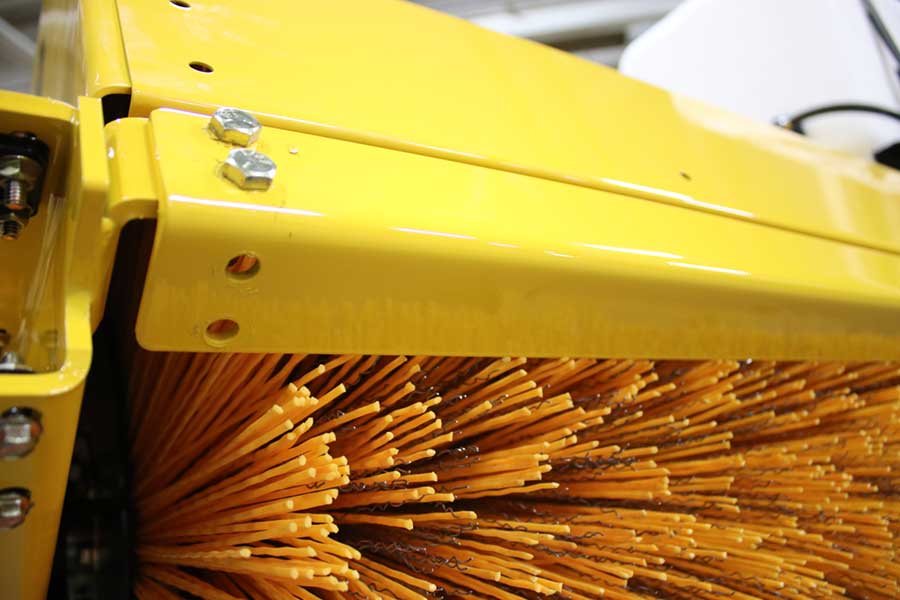

• Brush Diameter:

  32"

• Core Diameter:

  10"

• Broom Speed:

  up to 250 RPM, dependent on prime mover

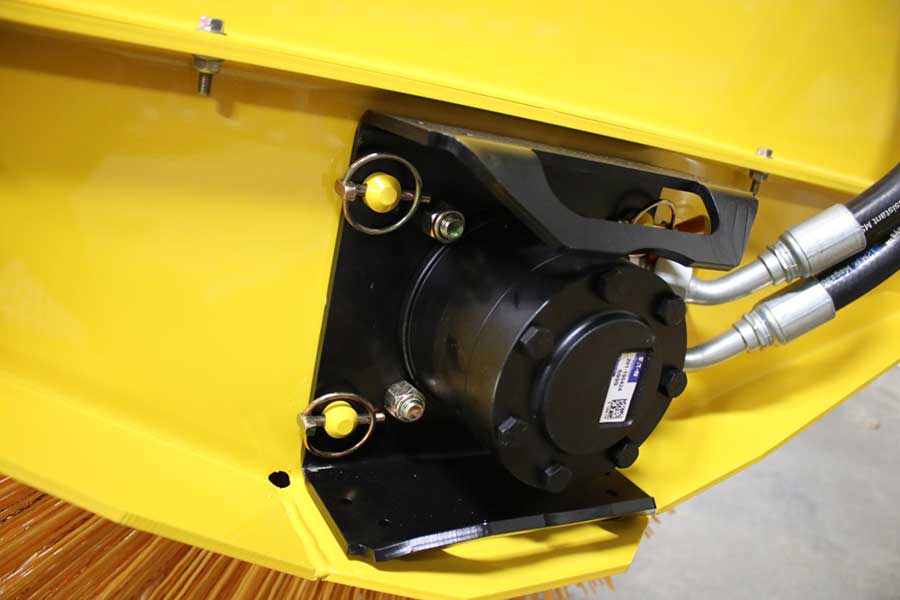

• Drive:

  Hydraulic

• Min. Hydraulic Flow:

  28 GPM (Dual Motor Low Flow)

• Max. Hydraulic Flow:

  45 GPM (Dual Motor Standard Flow)

• Options Available:

  Dirt Deflector
  Electric/Hydraulic Swing
  Independent Hydraulic System (Tractors only)
  Dual Low Flow Drive Motors
  Sprinkler Systems
  Front Spray Bar Only
  Oil Cooler
