HL-SB

Highlights

• Hydraulically driven rotary angle broom.

• Hydraulic swing capable of 30° left or right of center

• Storage stands for simple mounting, dis-mounting, and storage

• Spring system to damped transportation bounce

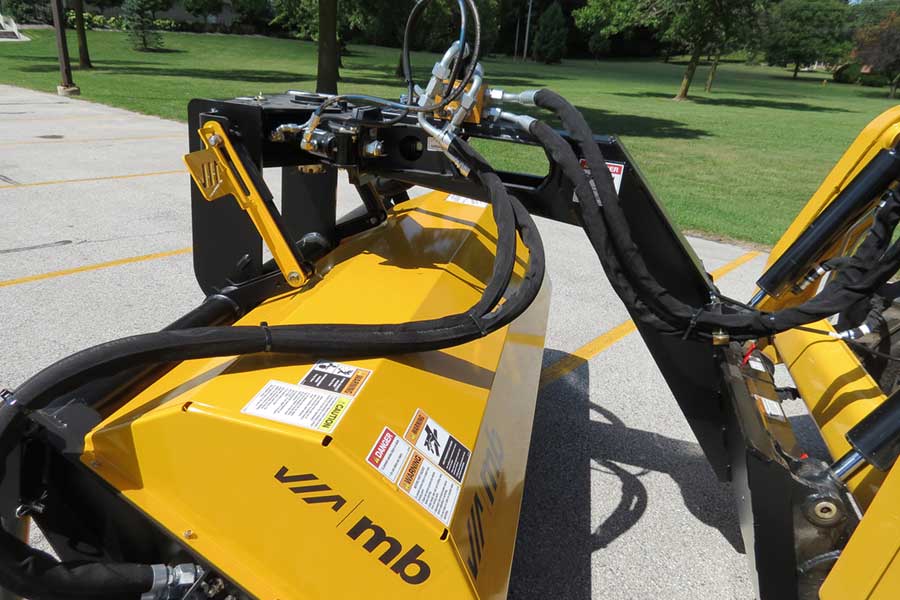

• Mounted with Skid Steer Quick Attach with easy entry steps

Equipment

• Sweeping Widths Available:

  5', 6', 7', 8'

• Brush Diameter:

  32"

• Core Diameter:

  10"

• Broom Speed:

  up to 200 RPM, dependent on prime mover

• Drive:

  Hydraulic

• Min. Hydraulic Flow:

  12 GPM (Single Standard Motor)

• Max. Hydraulic Flow:

  20 GPM (Single Standard Motor)

• Options Available:

  Dirt Deflector
  Low Flow Drive Motor
  Dual Standard Flow Drive Motors
  Dual Low Flow Drive Motors
  Sprinkler Systems
  Sight Indicators
  Oil Cooler
  Hose Kit
