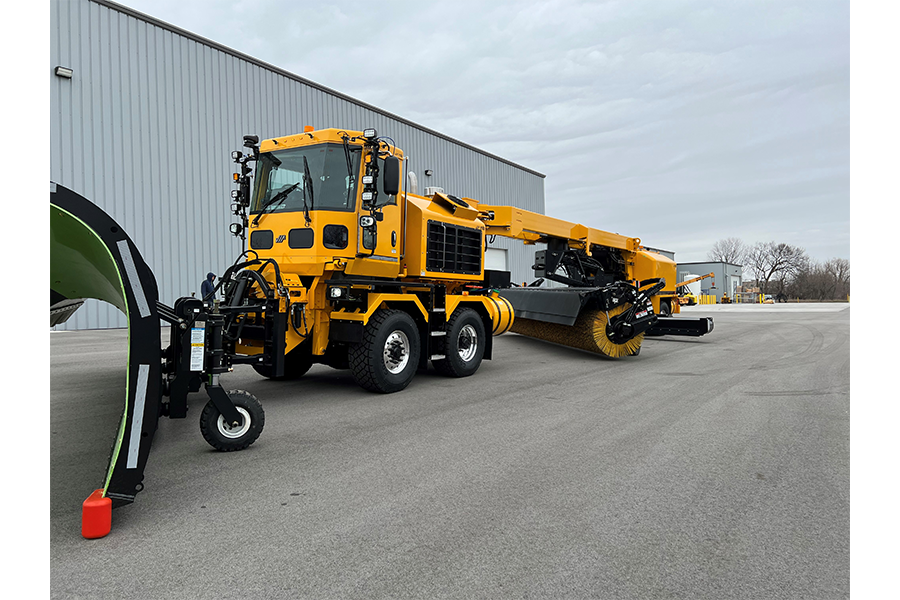

• Full Vehicle Side

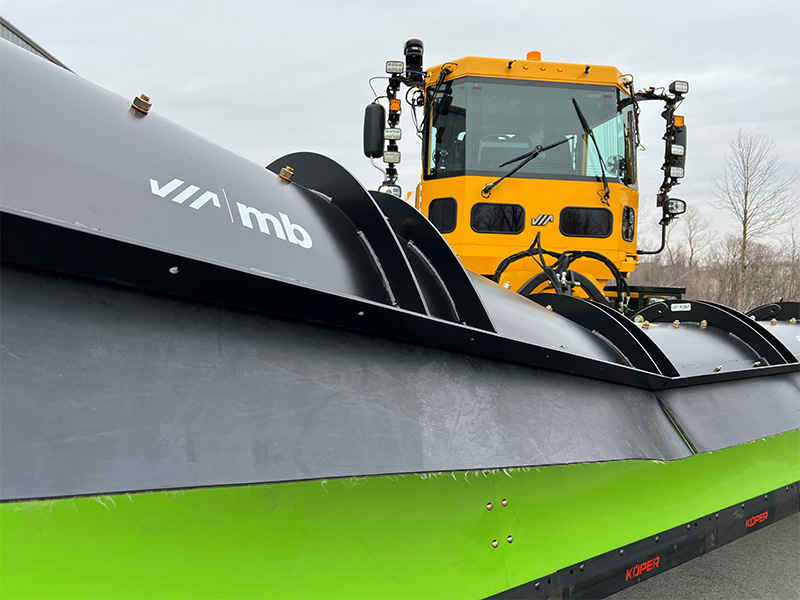

  • MB5c Head On Close Angled2 Resized

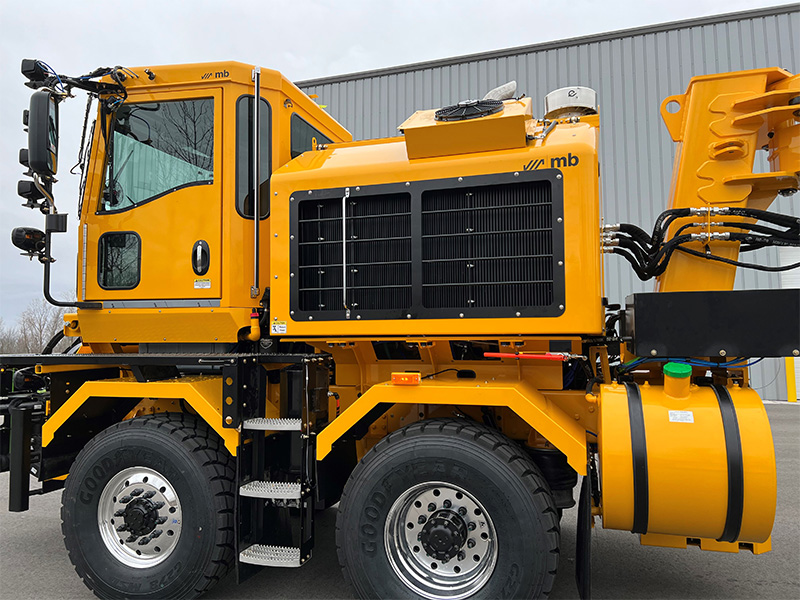

  • MBc Side Cabe Front Engine Resized

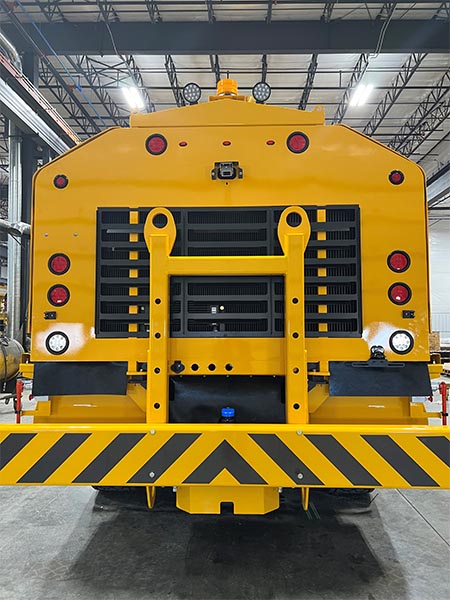

  • Mb5c Back Resized

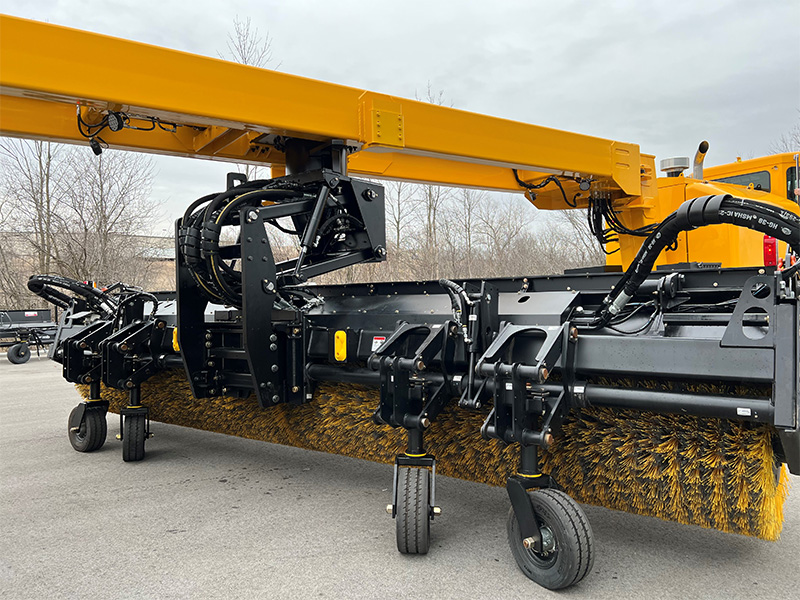

  • Mb5c Broom Close Resize

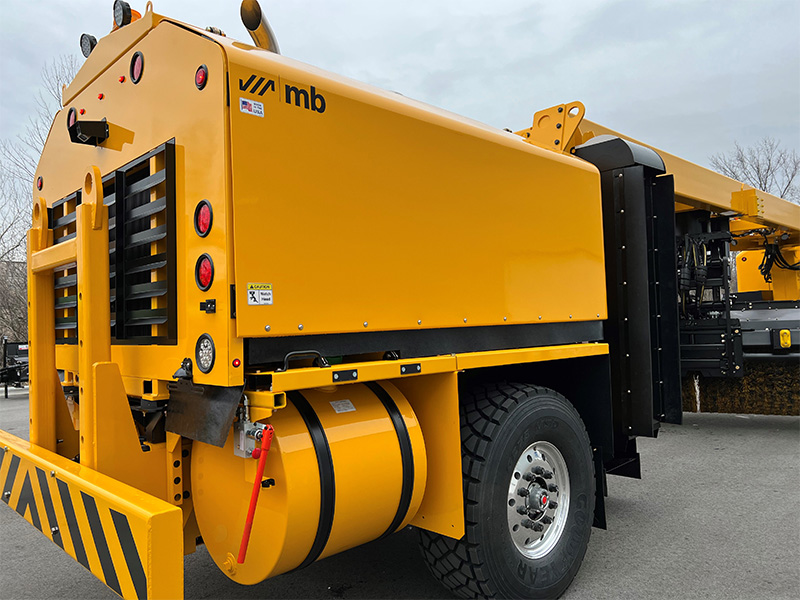

  • Mb5c Rear Engine Resiezed

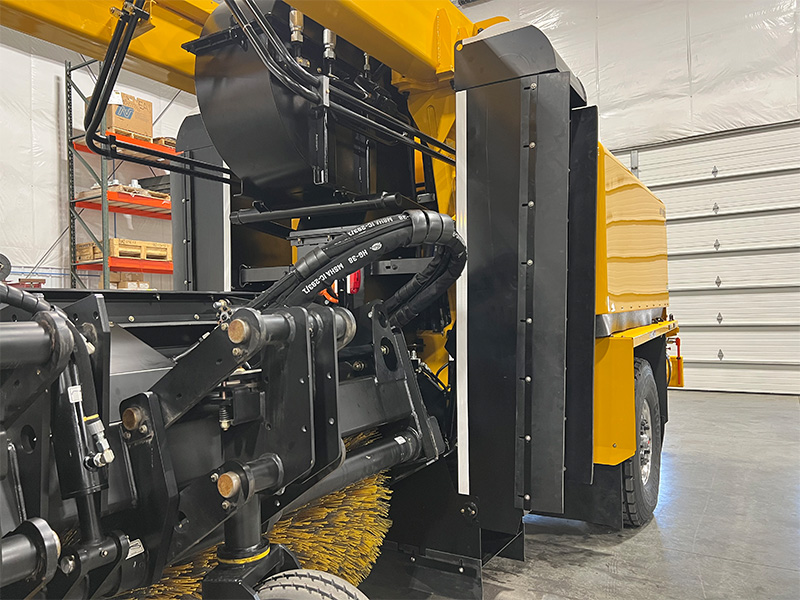

  • Mb5c Side

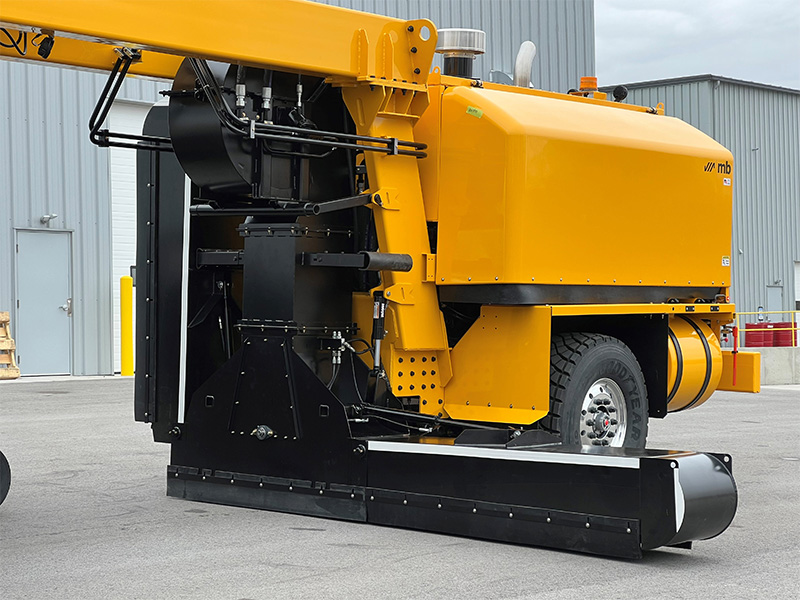

  • Blower Closeup Mb5c
  • Full Vehicle Side
  • MB5c Head On Close Angled2 Resized
  • MBc Side Cabe Front Engine Resized
  • Mb5c Back Resized
  • Mb5c Broom Close Resize
  • Mb5c Rear Engine Resiezed
  • Mb5c Side
  • Blower Closeup Mb5c

Related Documents

Related Solutions


MB5C

Highlights

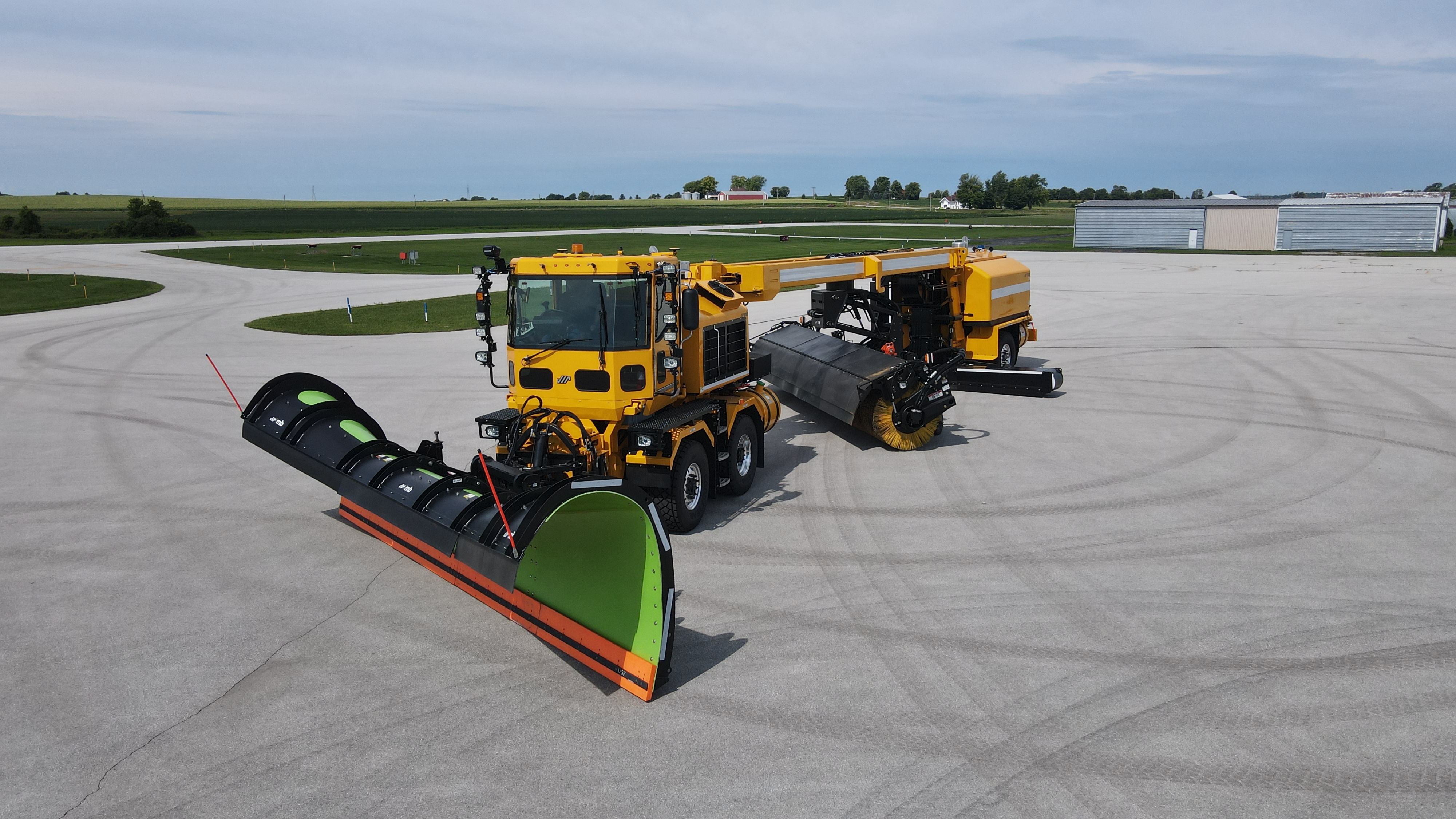

The MB5C is a multi-tasking snow removal chassis with cradling broom. It features increased specification flexibility that allows it to be parked in a 12 ft wide space, when the broom is stowed and the plow moldboard assembly is removed. Like the MB5, it has a versatile custom cab forward single unit chassis that pushes a front-mount plow, but it pulls ahead with a fully cradled 22 ft broom and rear-engine powered ultra-high capacity blower with dual chutes.

  • Rigid frame capabilities with electronic automatic articulation and rear trailer axle steering

  • Completely turns around in a 70 ft wide area, less than a taxiway

  • Configurable for various broom and plow sizes

  • Tapered suspension provides a smooth ride and increased driver control

  • Drive train assures the most efficient use of vehicle power with full time all-wheel drive with a full locking center differential and a lockable controlled traction differential at each axle

  • Electronic automatic traction control

Equipment

  • Front Axle :

    29,000 lbs

  • Rear Axle :

    27,000 lbs

  • Wheelbase:

    AWD

  • Drive Engine:

    496 HP

  • Transmission:

    Allison RDS 4000, 6 speed

  • Brakes :

    ABS air brake control system (4-channel) with automatic traction control

  • Fuel Capacity:

    Dual 75 gal fuel tanks

  • Tires :

    445/65R22.5 LR L traction tread front and rear tires

  • Controls :

    Cab integrated microprocessor CAN bus controls

  • Cab:

    MB two-man air ride cab

  • Standard Accessories :

    Side light bars
    Heated windshield
    High capacity cab heater
    Heated power mirrors and power windows
