Melter

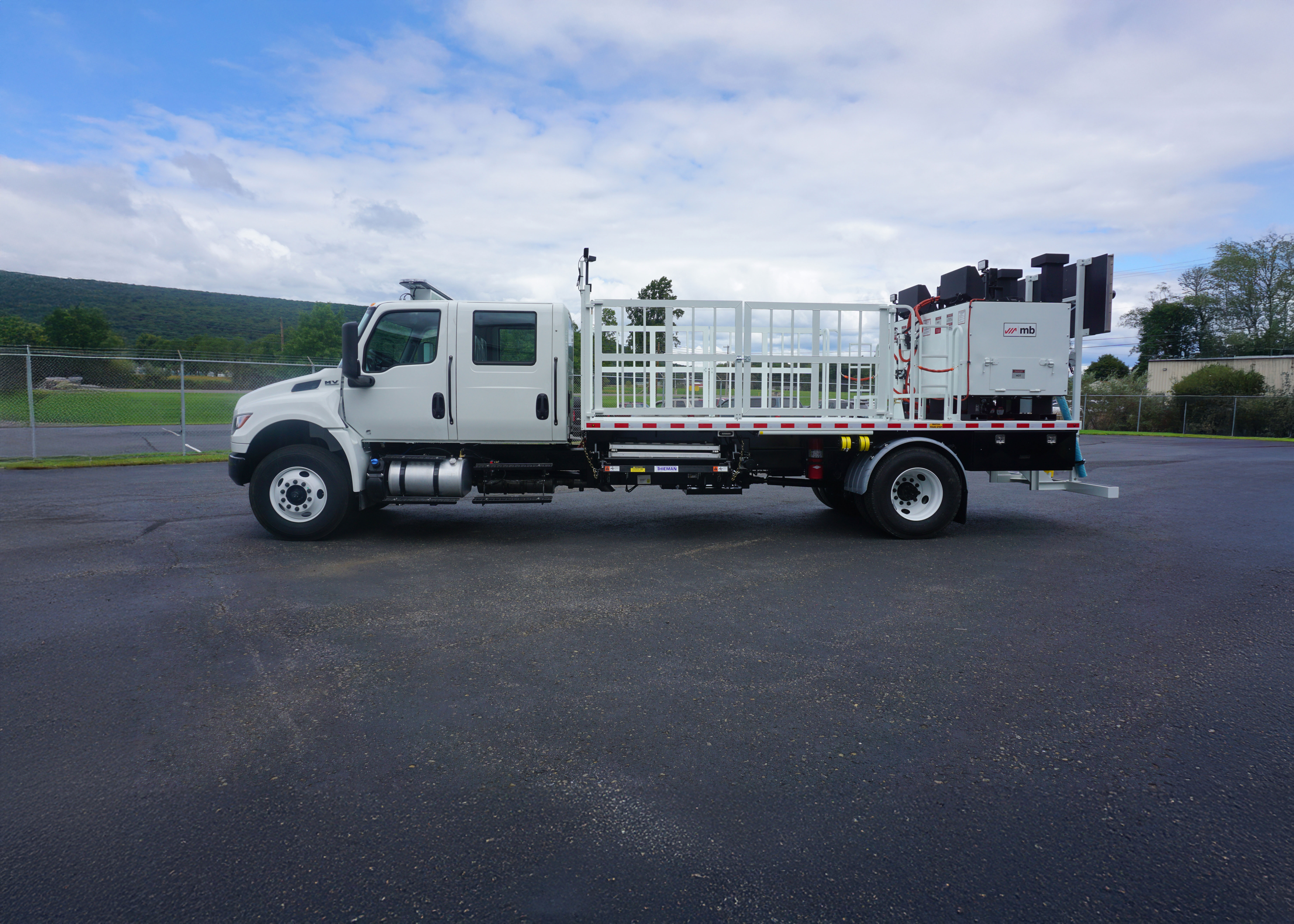

The MB Melter is a thermoplastic support system designed to supply molten material for Apollo applicator carts and long line striping trucks. Thermoplastic material is loaded into insulated kettles, where a burner heats the material through side heat stacks and a central heat riser. A hydraulic agitator keeps the material moving to ensure uniform melting and maintain optimal temperature. Available in stand-alone, skid-, trailer-, or truck-mounted configurations, the Melter offers capacities from one 500 kettle up to 4,000 lbs kettles and can be powered by propane or diesel engines. Optional cranes or lift gates allow safe handling of thermoplastic material and applicator equipment. The system is suitable for inner-city roads, highways, parking facilities, industrial and port areas, sidewalks, and cycleways.

Highlights

  • Hydraulic agitator – Ensures even melting of thermoplastic material for consistent performance

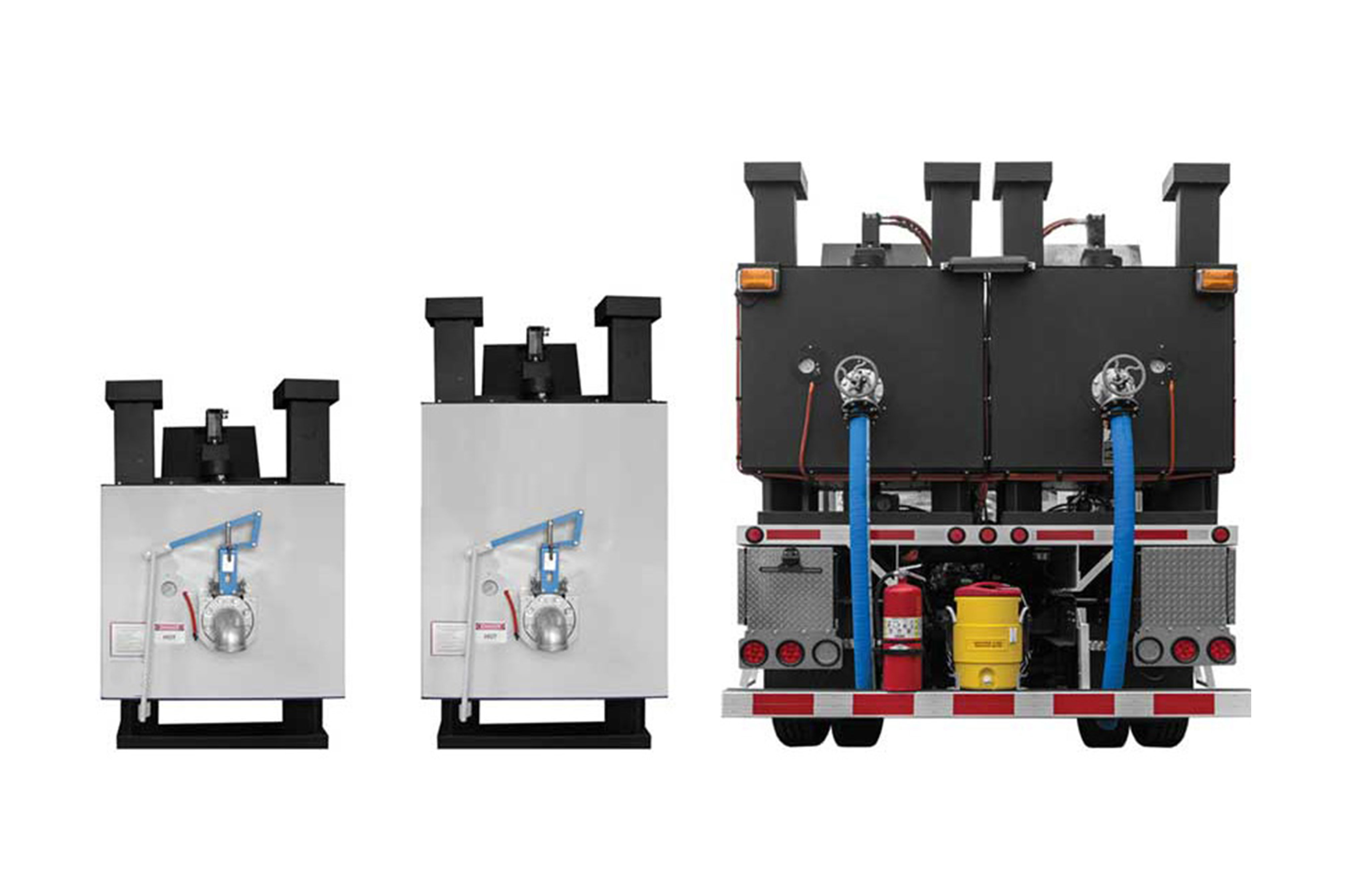

  • Insulated kettles – Maintain optimal temperature for efficient operation

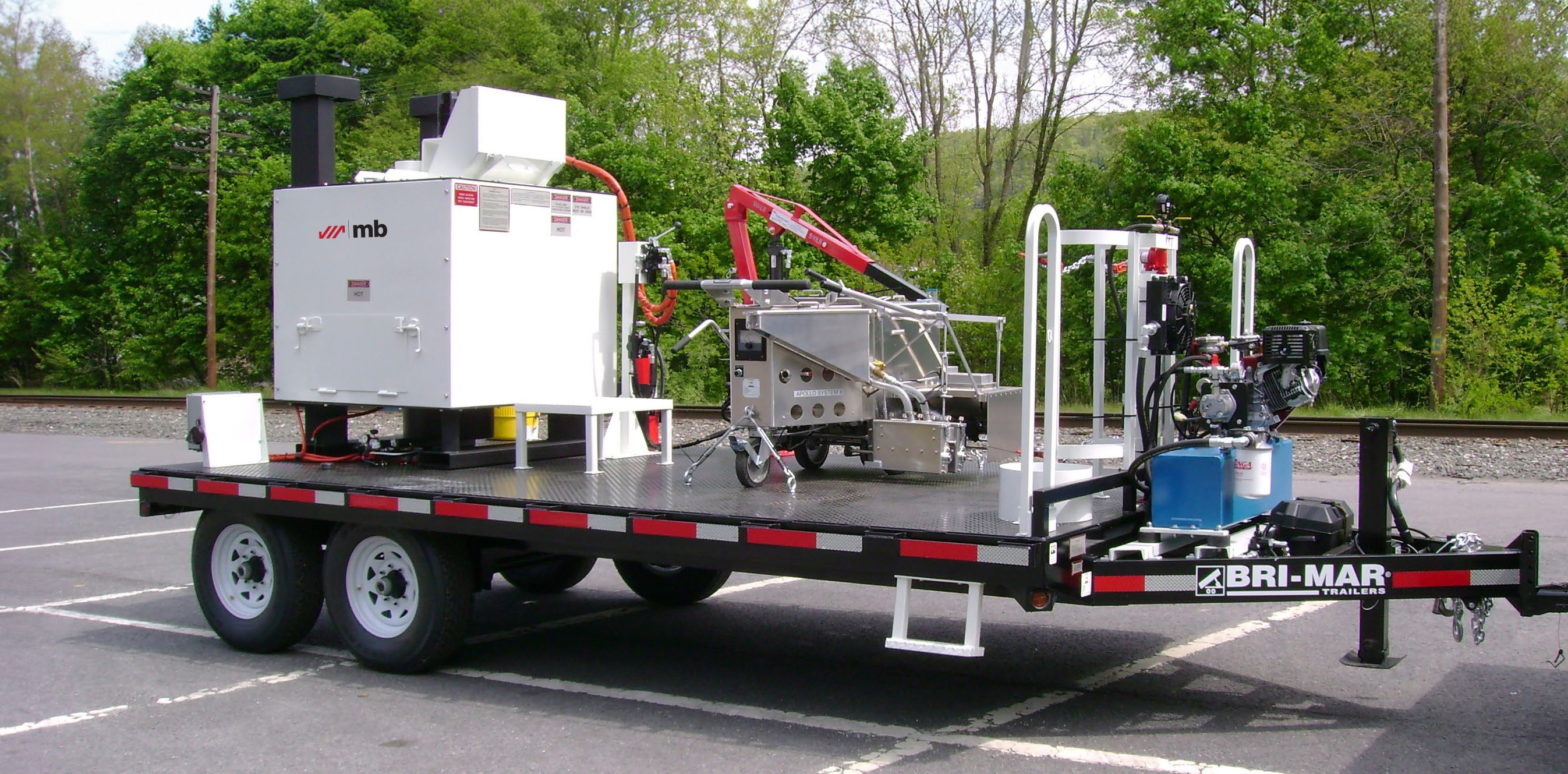

  • Flexible mounting options – Stand-alone, skid, trailer, or truck-mounted systems
  • Propane or diesel-fired heating – Adaptable to operational preferences and site conditions
  • Optional crane or lift gate – Safe and efficient handling of materials and applicator equipment

Your benefits

  • Consistent material supply – Supports uniform thermoplastic application and high-quality markings
  • Efficient pavement marking support – Reduces downtime when working with Apollo carts or long line striping trucks
  • Versatile deployment – Suitable for innercity roads, highways, parking facilities, industrial areas, sidewalks, and cycleways
  • Simplified operation – Flexible configurations fit different workflows and operational setups

Technical Data

  • System:

    trailer-mounted system | individual kettles without a trailer or chassis | skid-mounted (skidded) units

  • Material Tank Type:

    Air jacketed diesel fired kettle with hydraulic driven agitator and single burner

  • Material Plumbing:

    4" Plug Valve Outlet to 3" Teflon Lined Fill Hoses
