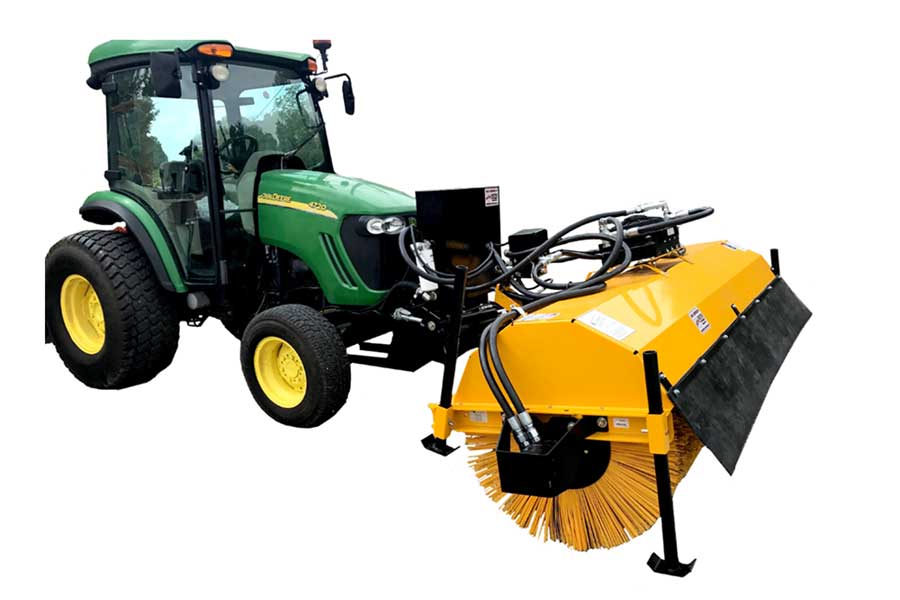

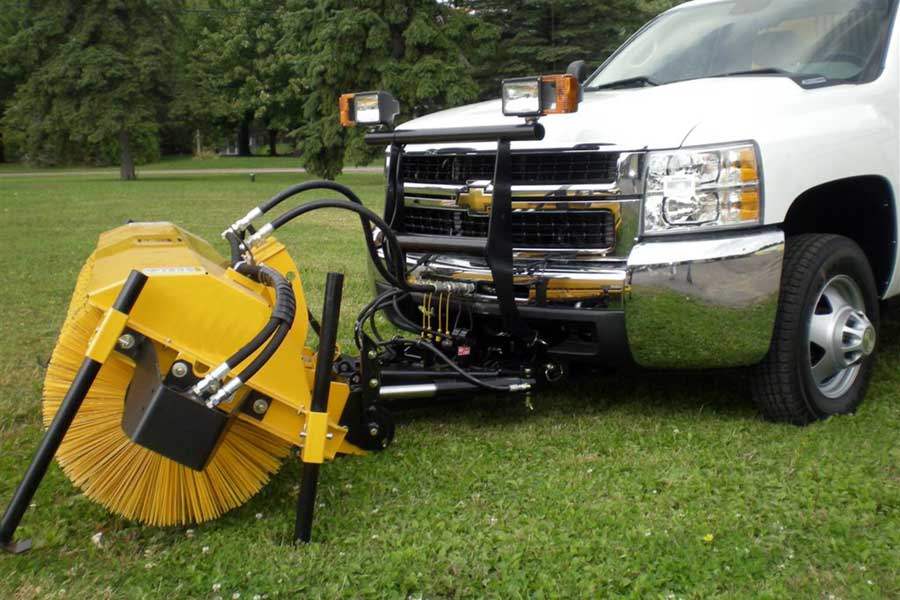

This front mounted hydraulic broom for tractors and versatile for many applications. The HT is ideal for removing or clearing snow, dirt, debris and grass.

  • Hydraulically driven rotary angle broom.

  • Hydraulic swing capable of 30° left or right of center

  • Storage stands for simple mounting, dis-mounting, and storage

  • Mounted to tractor frame

  • Brush and core assembly can be removed from frame without disconnecting hoses from drive motor(s)


  • Sweeping Widths Available:

    5', 6', 7', 8'

  • Brush Diameter:


  • Core Diameter:


  • Broom Speed:

    up to 200 RPM, dependent on prime mover

  • Drive:


  • Min. Hydraulic Flow:

    12 GPM (Single Standard Motor)

  • Max. Hydraulic Flow:

    20 GPM (Single Standard Motor)

  • Mounting:

    Mounted to tractor

  • Options Available:

    Dirt Deflector
    Low Flow Drive Motor
    Dual Standard Flow Drive Motors
    Dual Low Flow Drive Motors
    Sprinkler Systems
    Sight Indicators
    Oil Cooler
