Pressure Pot

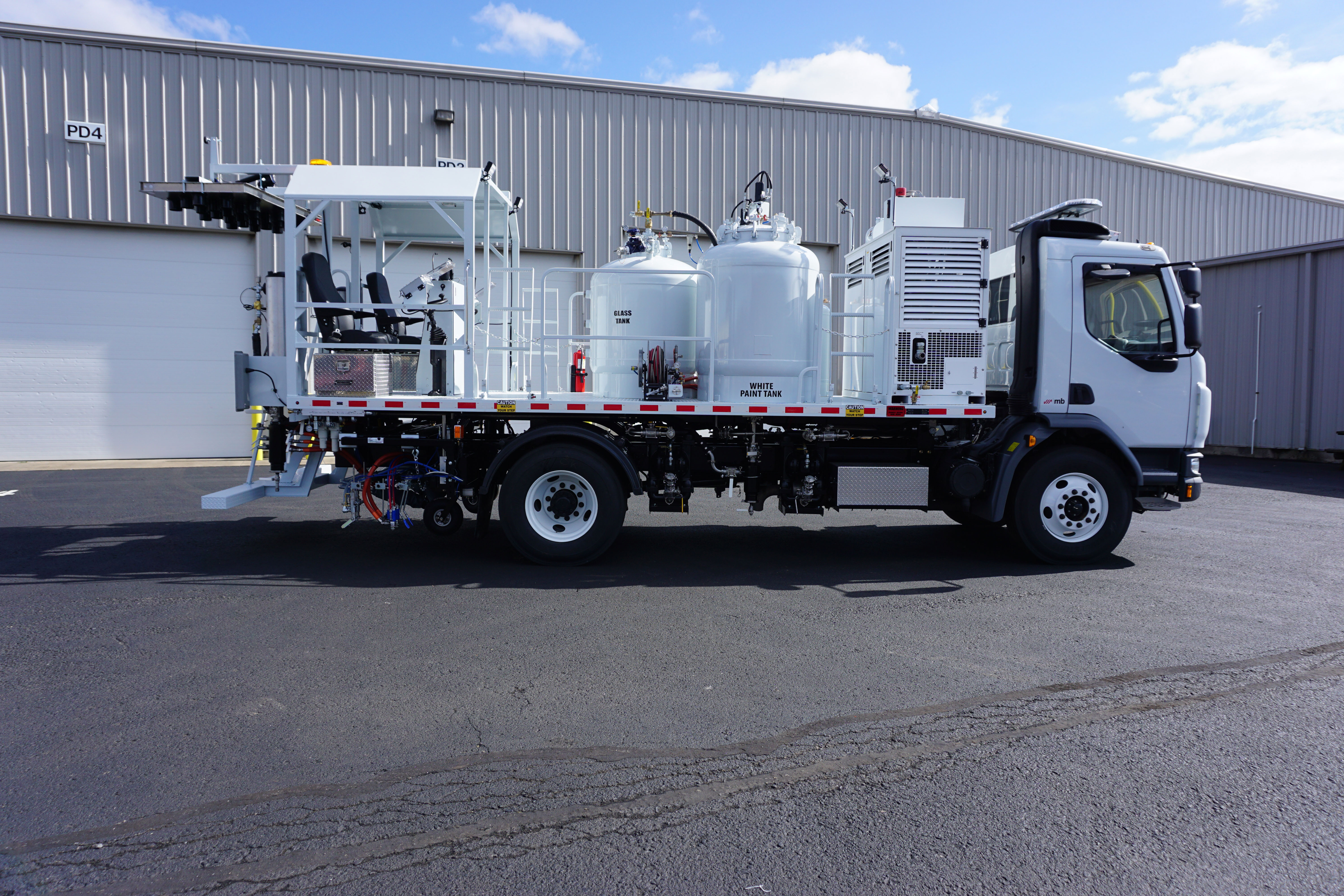

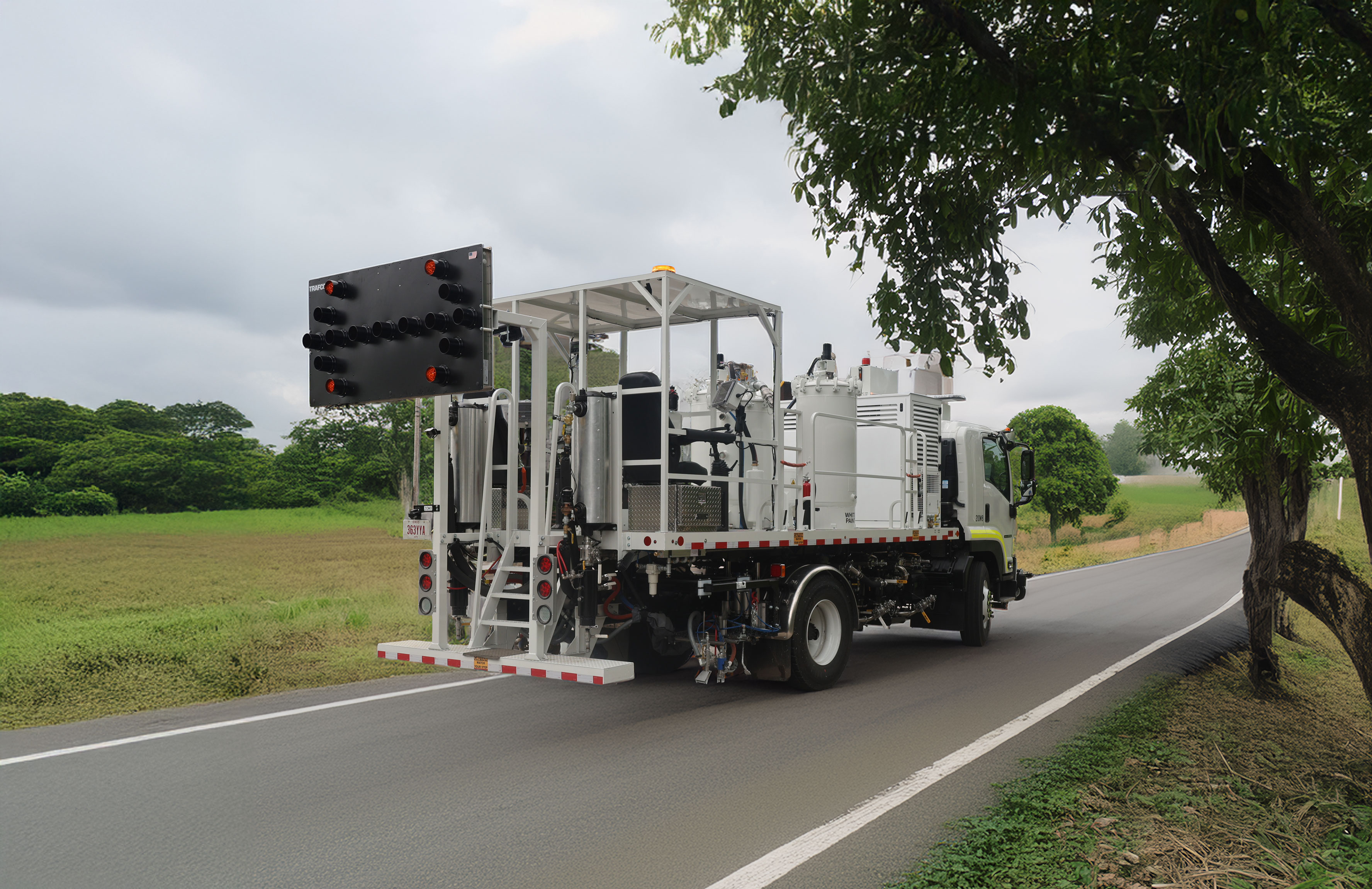

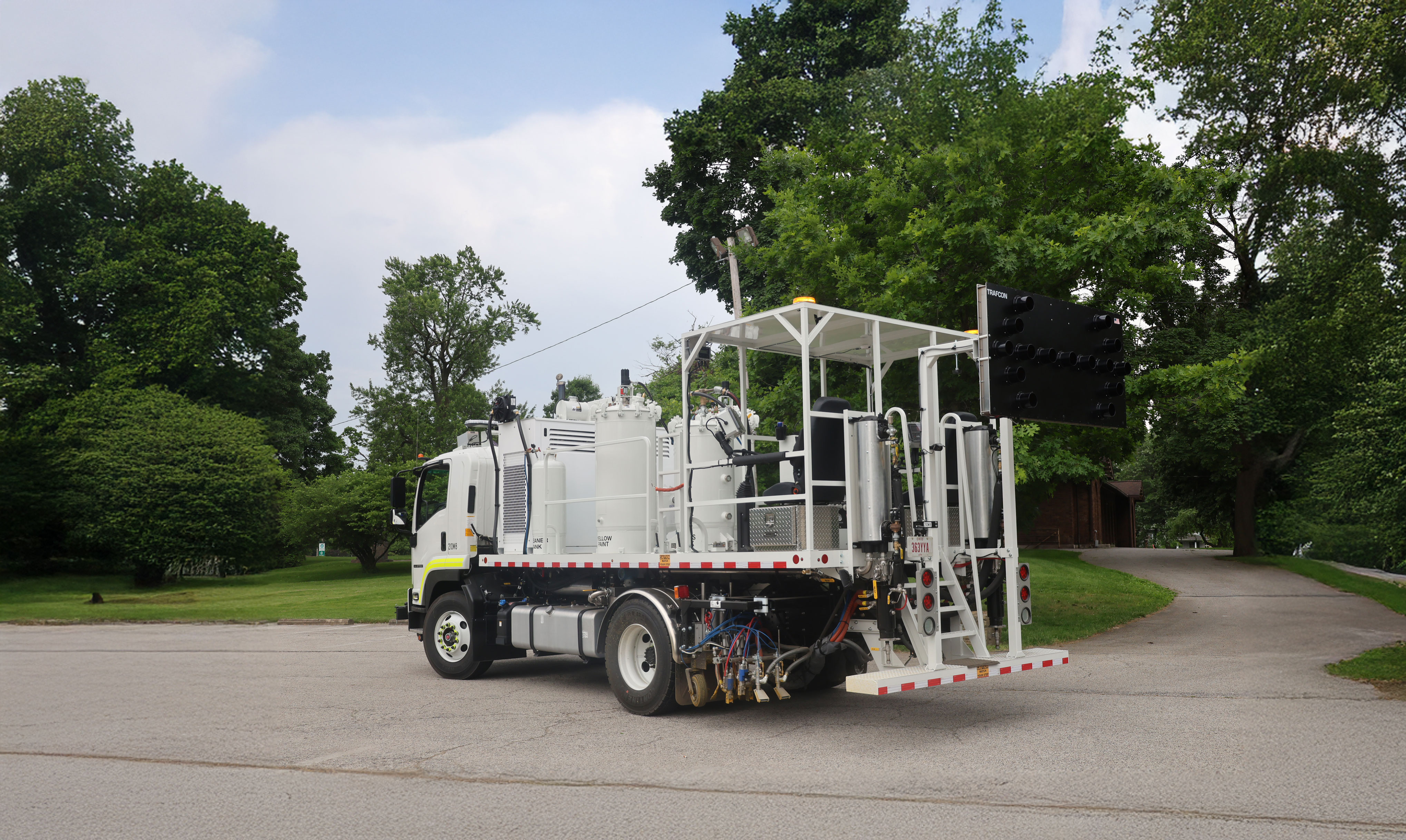

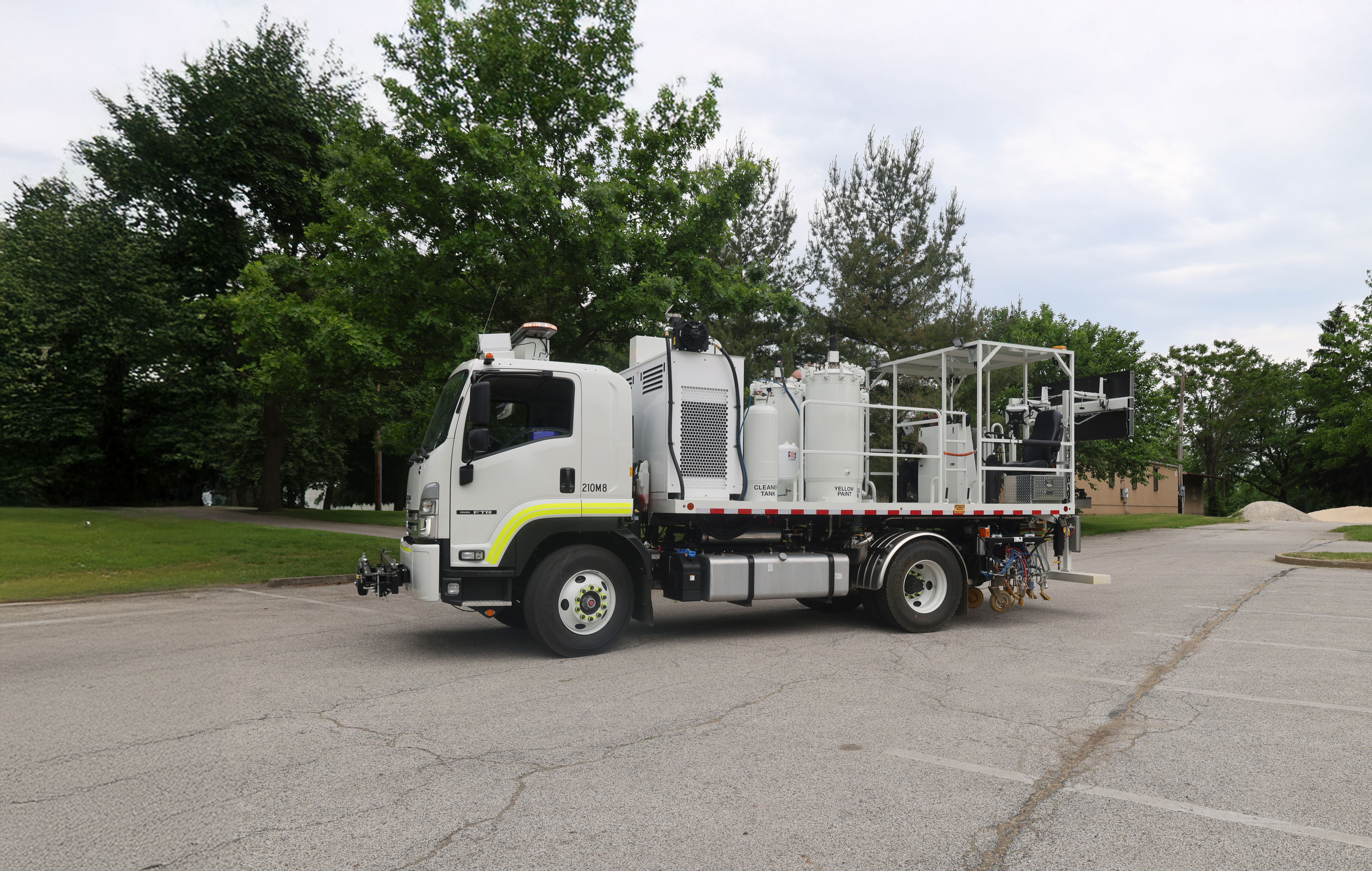

The MB Pressure Pot is an air-atomized paint pavement marking system which uses air pressure for paint delivery and spray. Paint is loaded into ASME-certified stainless steel pressure tanks by diaphragm pumps from a paint source. Paint is then delivered to the paint spray guns by paint tank air pressure. Inside the air atomized paint guns, atomizing air is injected into the paint stream, atomizing the paint into fine droplets. For optimal performance, a «flush-on-the-fly» gun tip flush system is supplied to clean the paint tips with cleaner solution and air purge. Delivering the highest level of reliability, the Pressure Pot offers precise control of paint and atomizing pressure, supports a wide range of vehicle speeds and paint viscosities, and provides the lowest cost to maintain in its class.

Highlights

  • Pressure Pot system – Dependable Results with Minimal Maintenance
  • Configurable guidance options including left and right-side guidance camera system, optical sight, laser, and hydraulic pointer and more
  • Flexible control systems with Skipline, handheld remotes, and joystick operation
  • Gun height adjustment and insulated paint lines ensure crisp, clean application
  • Multiple gun systems available: paint and bead guns from Kamber and Graco

Your benefits

  • Simple to operate and maintain – Intuitive design and service access
  • Highly reliable – Durable components for consistent performance
  • Precise control of paint and atomizing pressure
  • Low maintenance cost – Quick, modular servicing
  • Versatile performance – Handles various speeds and paint viscosities

Equipment

  • Procut Variants:

    Advantage 500, Advantage 800, Urbanliner 120, Urbanliner 240

  • Chassis Model:

    Isuzu FVR, Peterbilt 520, Isuzu NRR, Isuzu FTR

  • Chassis GVWR:

    33,000 lbs, 60,000 lbs, 19,500 lbs, 25,900 lbs

  • Paint Guns:

    Kamber 38-15
