4600 CRDL

Highlights

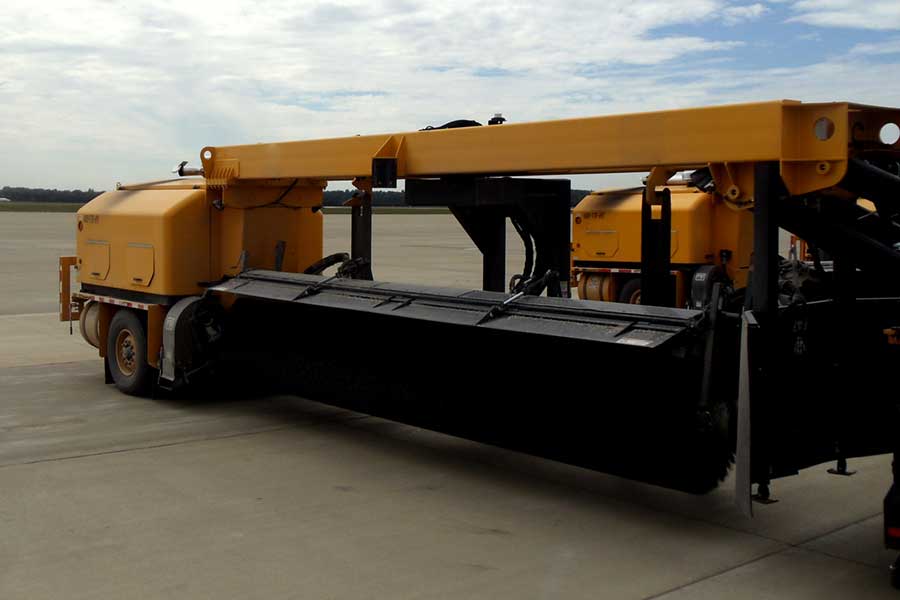

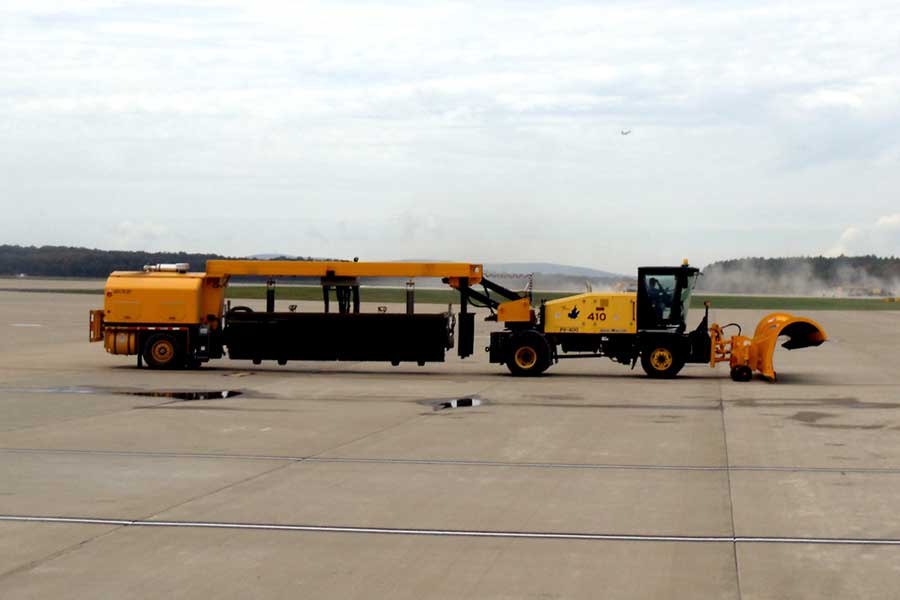

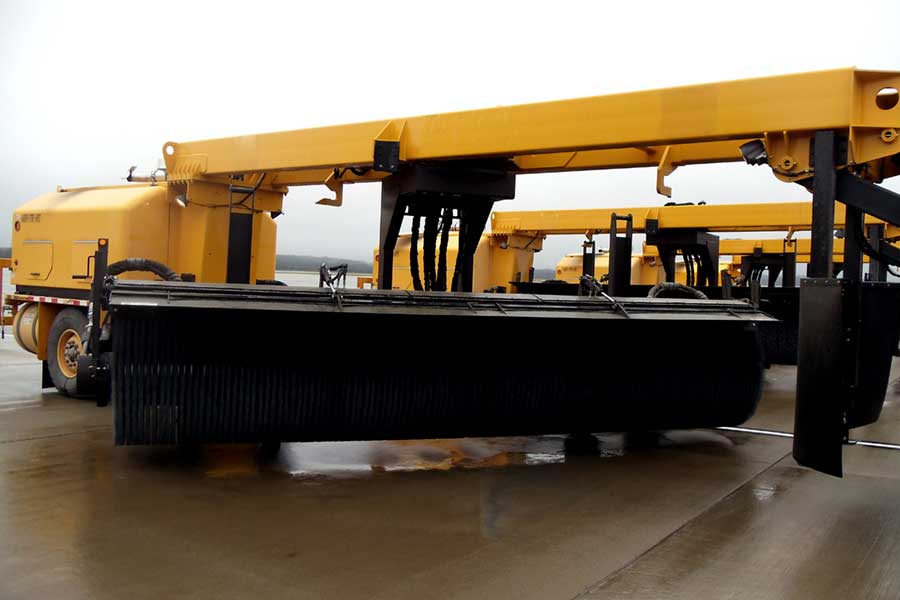

The 4600-CRDL Cradling Broom is designed for stowing and cradling in-line for transport and storage. The casters lift off the ground when cradled to eliminate damage during transport and to extend caster life

  • Equipped with a 26,000 pound steering axle with ABS as standard.

  • The automatic steering system includes automatic drift control and has provisions for centering and disengaging the axle steering system.

  • 46 inch diameter broom is available in lengths of 16, 18, 20, and 22 feet, providing swept paths up to 18 feet wide.

  • The broom head can turn up to 600 RPMs with 4024 ft-lbs of available torque at the broom shaft with 5075 psi maximum working pressure.

Equipment

  • Sweeping Widths Available:

    18', 20', 22'

  • Brush Diameter:

    46"

  • Broom Speed:

    475 rpm broom with 2656 ft-lbs of available torque at the broom shaft at 5075 psi maximum working pressure

  • Drive:

    375 HP, electronic turbocharged diesel engine, T4F EPA emission certified

  • Fuel:

    150-gallon fuel tank dedicated for the broom engine for 12 hours of operation

  • Options Available:

    Additional chassis integration, broom power, engine and spare parts available.
