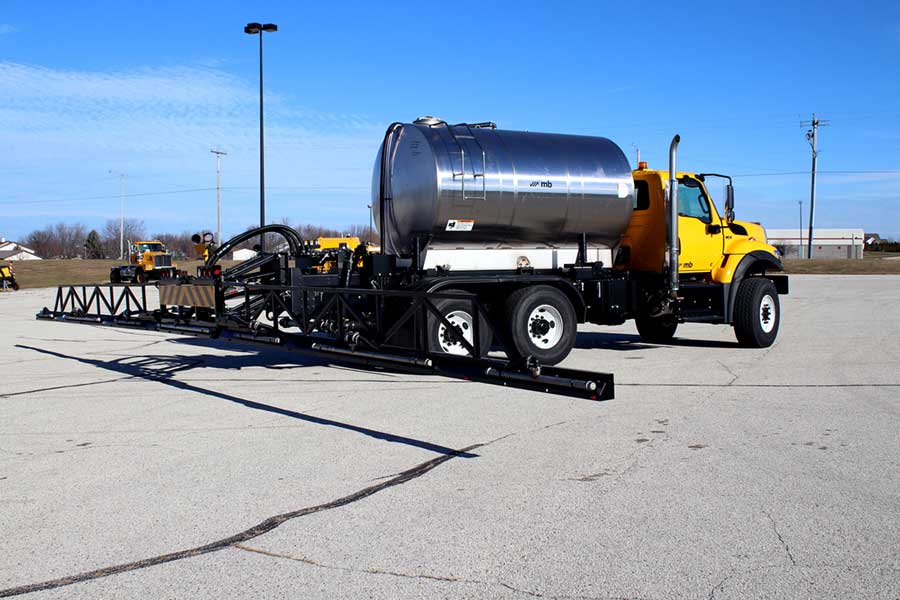

1250 Loader

Highlights

• Spray nozzles and pump curves can be adjusted to cover up to an 18-foot path.

• When deployed, the 38-foot spray bar applies fluid in a 40-foot pattern.

• At a rate of 0.5 gallons per 1,000 square feet at 25 miles per hour with a spray width of 18 feet, the 1250-gallon tank enables the vehicle to anti-ice for 17 passes on an 8,000-foot runway without refilling.

• At a rate of 0.5 gallons per 1,000 square feet at 25 miles per hour with a spray path 40-foot wide, the 1250-gallon tank enables the vehicle to anti-ice for over 8 passes on a 7,500-foot runway without refilling.

Equipment

• Front Axle :

  29,000 lbs

• Rear Axle :

  27,000 lbs

• Wheelbase:

  4WD

• Drive Engine:

  375 HP

• Transmission:

  Allison RDS 4000, 6 speed

• Brakes :

  ABS air brake control system (4-channel) with automatic traction control

• Fuel Capacity:

  Dual 75 gal fuel tanks

• Tires :

  445/65R22.5 LR L traction tread front and rear tires

• Controls :

  Cab integrated microprocessor CAN bus controls

• Cab:

  MB two-man air ride cab

• Standard Accessories :

  Side light bars
  Heated windshield
  High capacity cab heater
  Heated power mirrors
  Power windows
